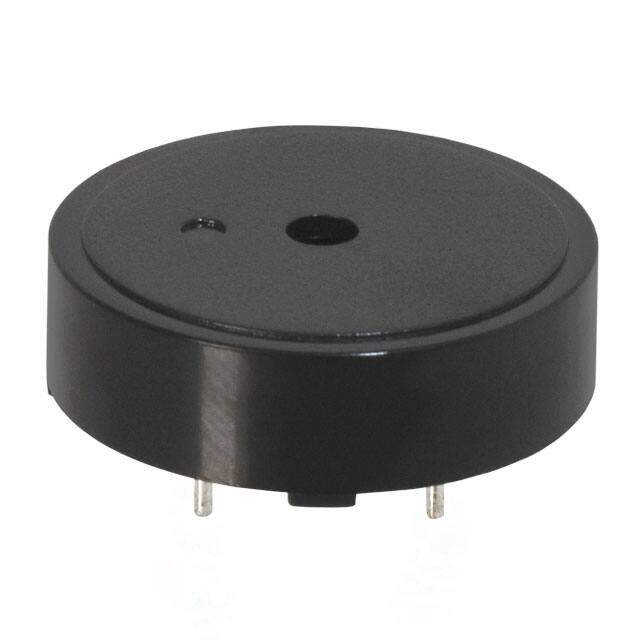

CPT-2475-92T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
BUZZER, 24 MM, 7.5 MM DEEP, P, 1
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.457319
≥1 USD $1.457319
≥200 USD $0.581615
≥500 USD $0.563234
≥1000 USD $0.552731
Inventory: 1433
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.303 7.70mm
Technical
Driver Circuitry Transducer, Externally Driven
Sound Pressure Level (SPL) 92dB @ 10V, 10cm
Port Location Top
Voltage Range 1V~30V
Current - Supply 8mA
Input Type Peak-Peak Signal
Frequency 4kHz
Technology Piezo
Voltage - Rated 10V
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.945Dia 24.00mm
Series CPT
Operating Temperature -30°C~70°C
Physical
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
