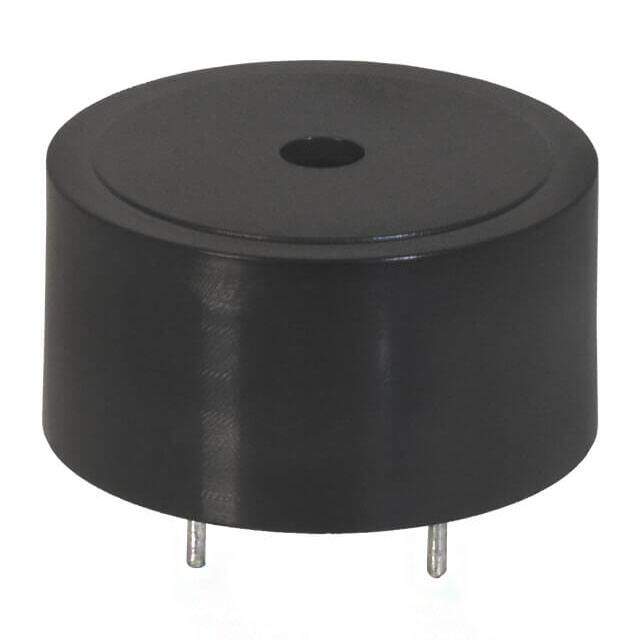

CPT-2312-88T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
BUZZER, 23 MM, 12 MM DEEP, P, 12
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.73832
≥100 USD $0.68288
≥500 USD $0.642928
≥1000 USD $0.60412
≥3000 USD $0.560419
Inventory: 582
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.492 12.50mm
Technical
Driver Circuitry Transducer, Externally Driven
Sound Pressure Level (SPL) 88dB @ 12V, 10cm
Port Location Top
Voltage Range 1V~30V
Current - Supply 5mA
Input Type Peak-Peak Signal
Frequency 2kHz
Technology Piezo
Voltage - Rated 12V
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.906Dia 23.00mm
Series CPT
Operating Temperature -40°C~85°C
Physical
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
