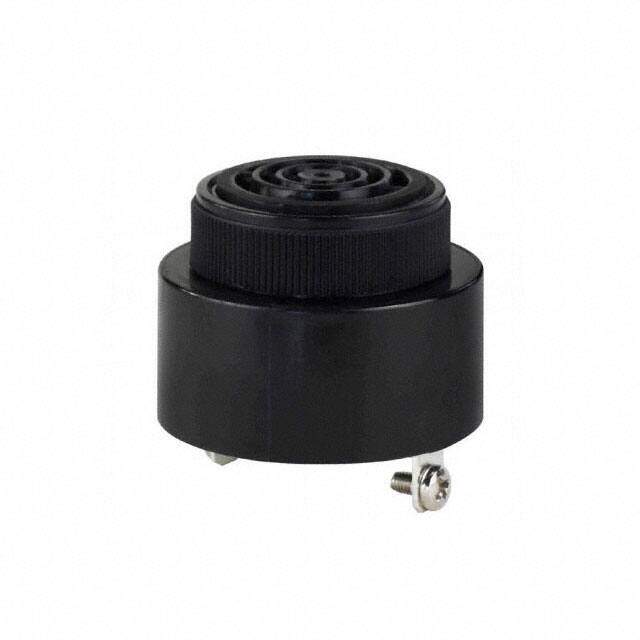

CPI-4232-92SST
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
BUZZER, 42.5 MM, 32.5 MM DEEP, P
PDF
/
Buying Options
Total Price: USD $12.59
Unit Price: USD $12.587524
≥1 USD $12.587524
≥10 USD $11.875023
≥100 USD $11.202858
≥500 USD $10.568728
≥1000 USD $9.970507
Inventory: 1155
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 1.280 32.50mm
Technical
Driver Circuitry Indicator, Internally Driven
Sound Pressure Level (SPL) 95dB @ 18V, 60cm
Port Location Top
Voltage Range 7V~18V
Current - Supply 8mA~32mA
Input Type DC
Operating Mode Pulse, Slow
Frequency 2.9kHz
Technology Piezo
Voltage - Rated 12V
Termination Screw Terminal, Quick Connect Tab - 0.256 (6.50mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.673Dia 42.50mm
Series CPI
Operating Temperature -30°C~85°C
Physical
Mounting Type Panel Mount
Supply Chain
Factory Lead Time 9 Weeks
