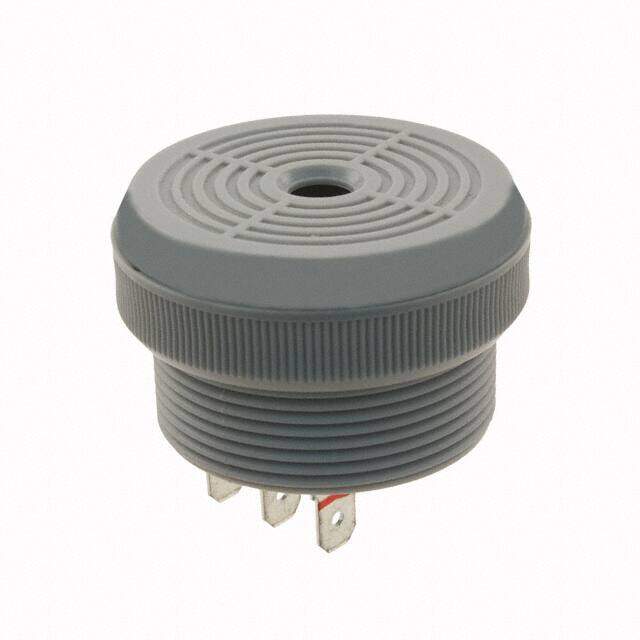

CPE-757
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
Audio Indicator Piezo 6VDC 28VDC 9mA 9VDC 82dB 3100Hz to 4100Hz Panel Mount Screw Box
PDF
/
Buying Options
Total Price: USD $7.64
Unit Price: USD $7.6384
≥1 USD $7.6384
≥10 USD $6.556
Inventory: 791
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.945 24.00mm
Height 24mm
Technical
Driver Circuitry Indicator, Internally Driven
Sound Pressure Level (SPL) 82dB @ 12V, 30cm
Port Location Top
Washable No
Voltage Range 6V~28V
Input Type DC
Operating Mode Pin Selectable
Operating Supply Current 9mA
Frequency 3.6kHz
Technology Piezo
Voltage - Rated 12V
Termination Screw Terminal, Quick Connect Tab - 0.189 (4.80mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.488Dia 37.80mm
Series CPE
Published 2011
Packaging Bulk
Operating Temperature -30°C~80°C
Physical
Mounting Type Panel Mount
Mount Panel
Supply Chain
Factory Lead Time 14 Weeks
