CPE-460
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description

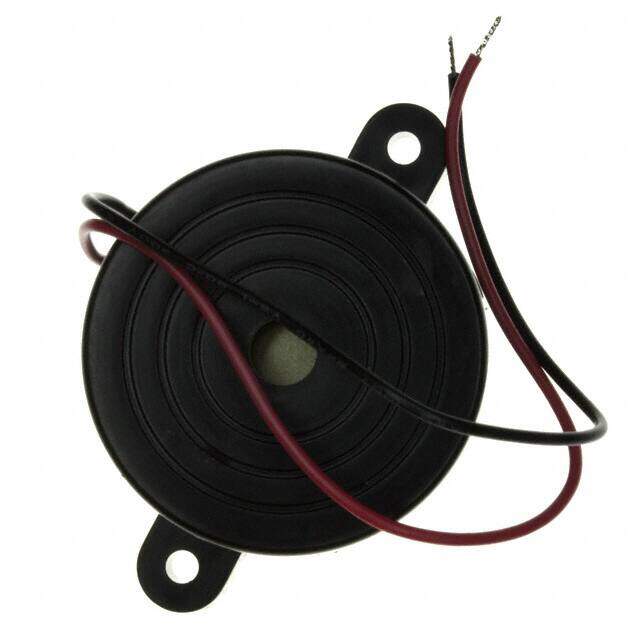

41.8 mm, 9~14 V, 89 dB, 0.3 kHz, Panel Mount w/Wire Leads, Driving Circuit, Piezo Audio Indicator Buzzer
PDF
/
Buying Options
Total Price: USD $4.33
Unit Price: USD $4.3296
≥1 USD $4.3296
≥10 USD $3.57632
≥100 USD $3.297184
≥500 USD $3.094608
≥1000 USD $2.899864
≥3000 USD $2.725853
Inventory: 846
Minimum: 1
-
+
Technical Details
Technical
Washable No
Port Location Top
Sound Pressure Level (SPL) 89dB @ 12V, 30cm
Driver Circuitry Indicator, Internally Driven
Voltage Range 9V~14V
Input Type DC
Operating Mode Single Tone
Operating Supply Current 70mA
Frequency 300Hz
Technology Piezo
Voltage - Rated 12V
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.646Dia 41.80mm
Series CPE
Published 2011
Packaging Bulk
Operating Temperature -20°C~60°C
Dimensions
Height 22.5mm
Height Seated (Max) 0.886 22.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Mounting Type Panel Mount, Flange
Mount Chassis Mount
Supply Chain
Factory Lead Time 15 Weeks
