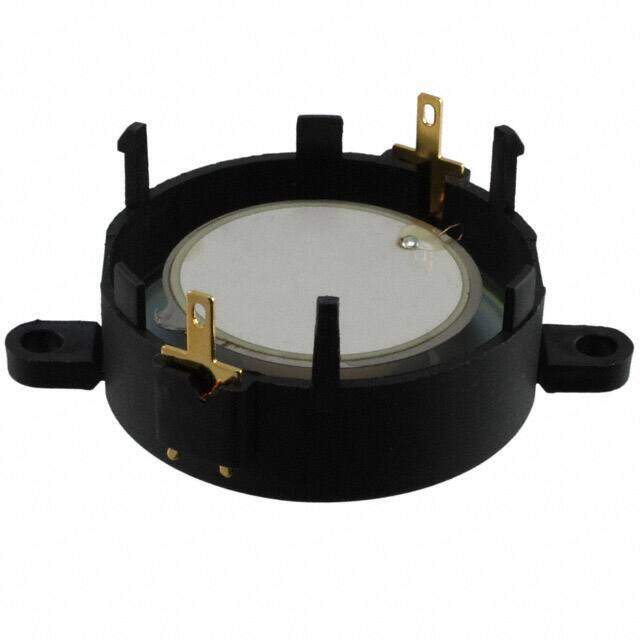

CPE-4485
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Audio Products / Alarms, Buzzers, and Sirens
Description
BUZZER PIEZO 12V 44.8MM T/H
PDF
/
Buying Options
Total Price: USD $4.15
Unit Price: USD $4.146559
≥1 USD $4.146559
≥10 USD $3.911845
≥100 USD $3.690424
≥500 USD $3.481537
≥1000 USD $3.284466
Inventory: 1247
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2012
Series CPE
Size / Dimension 1.764Dia 44.80mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Voltage - Rated 12V
Technology Piezo
Frequency 3.1kHz
Operating Mode Single Tone
Input Type Peak-Peak Signal
Washable No
Port Location Top
Sound Pressure Level (SPL) 100dB @ 12V, 30cm
Driver Circuitry Transducer, Externally Driven
Dimensions
Height 14.1mm
Height Seated (Max) 0.555 14.10mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
