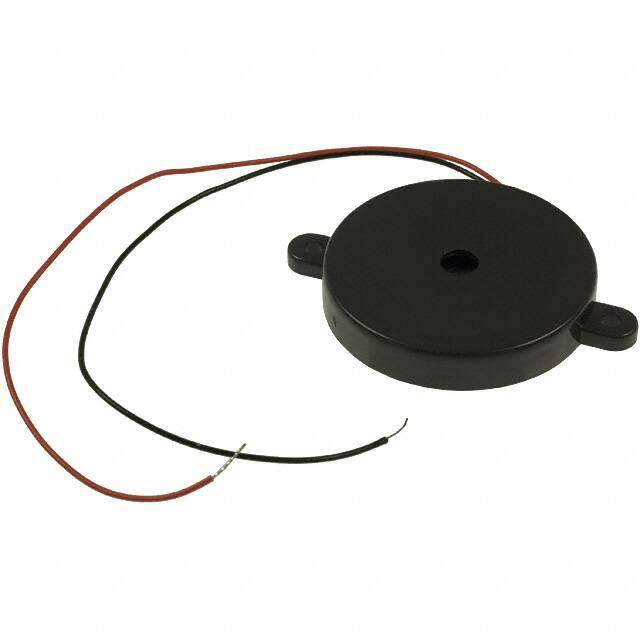

CEP-1126
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO PIEZO TRANSDUCER 30V CHAS
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.16248
≥100 USD $1.074304
≥500 USD $1.010416
≥1000 USD $0.948552
≥3000 USD $0.878882
Inventory: 976
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.224 5.70mm
Height 10.2mm
Diameter 29.5mm
Technical
Driver Circuitry Transducer, Externally Driven
Sound Pressure Level (SPL) 92dB @ 10V, 10cm
Port Location Top
Washable No
Self Resonant Frequency 2.8kHz
Voltage Range 30V Max
Current - Supply 10mA
Input Type Peak-Peak Signal
Operating Mode Single Tone
Operating Supply Current 10mA
Technology Piezo
Capacitance 18nF
Voltage - Rated 10V
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.161Dia 29.50mm
Series CEP
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Mounting Type Panel Mount, Flange
Mount Chassis Mount
Supply Chain
Factory Lead Time 14 Weeks
