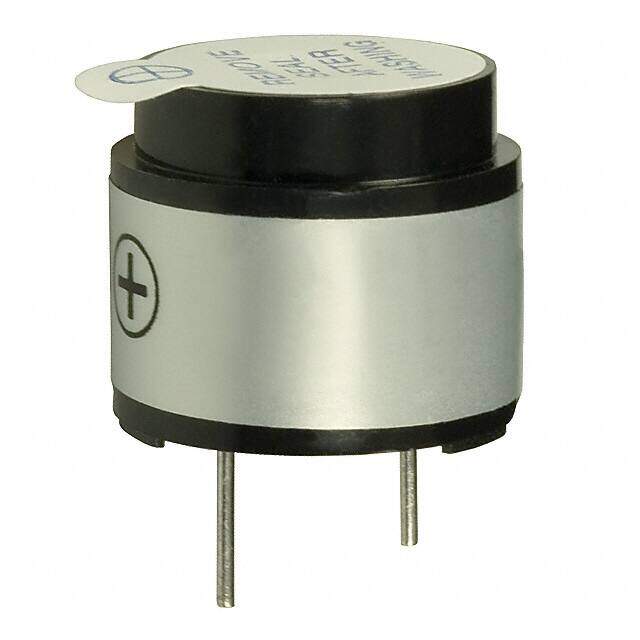

CEM-1601
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Alarms, Buzzers, and Sirens
Description
AUDIO MAGNETIC XDCR 1-3V TH
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.0736
≥1 USD $1.0736
≥10 USD $0.89496
≥100 USD $0.828256
≥500 USD $0.77968
≥1000 USD $0.732714
≥3000 USD $0.630432
Inventory: 364
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -20°C~60°C
Packaging Tray
Published 2011
Series CEM
Size / Dimension 0.630Dia 16.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Voltage - Rated 1.5V
Technology Magnetic
Frequency 2.048kHz
Operating Supply Current 20mA
Operating Mode Single Tone
Input Type Zero-Peak Signal
Voltage Range 1V~3V
Self Resonant Frequency 2.05kHz
Washable Yes
Port Location Top
Sound Pressure Level (SPL) 80dB @ 1.5V, 10cm
Driver Circuitry Transducer, Externally Driven
Dimensions
Diameter 16mm
Height 14.5mm
Height Seated (Max) 0.571 14.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Washable
