2S09-08.0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Accessories
Description

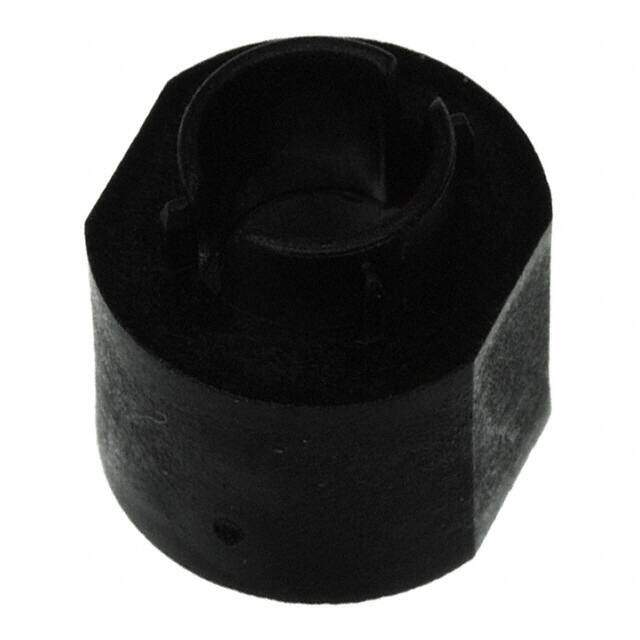

EXTENDER SWITCH 8MM HEIGHT
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.484
≥1 USD $0.484
≥10 USD $0.43736
≥100 USD $0.41536
≥500 USD $0.404624
≥1000 USD $0.39908
≥3000 USD $0.393624
Inventory: 1166
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Surface Mount NO
Mounting Feature THROUGH HOLE-STRAIGHT
Technical
Series Multimec?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8536.50.90.31
Body Length or Diameter 10.1mm
Operating Temperature (Max) 160°C
Body Breadth 10.1 mm
Operating Temperature (Min) -40°C
Contact Current(DC)-Max 0.05A
Sealing IP67
Contact Voltage(DC)-Max 24V
Termination Type SOLDER
Electrical Life 10000000 Cycle(s)
Accessory Type Switch Extender
Switch Type PUSHBUTTON SWITCH
Contact (DC) Max Rating R Load .05A@24VDC
Switch Action MOMENTARY
Dimensions
Body Height 7.5mm
Compliance
RoHS Status ROHS3 Compliant
