272-07293
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Accessories
Description

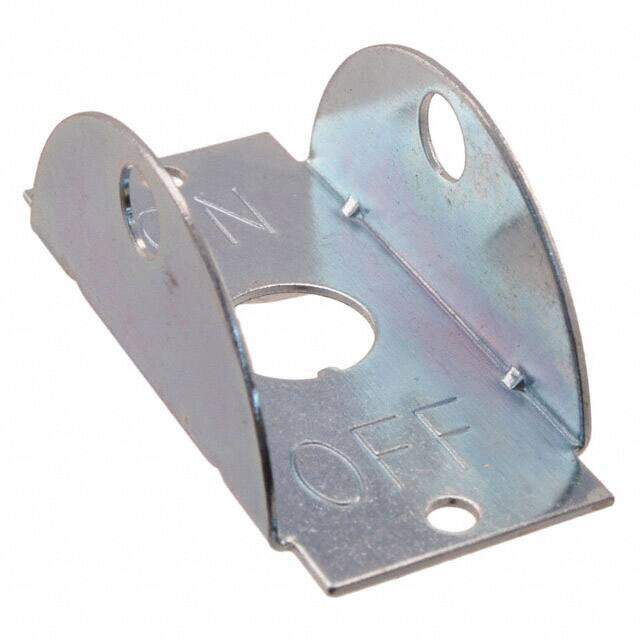

SWITCH PLATE ON-OFF 15/32
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $1.1484
≥100 USD $1.117952
≥500 USD $1.102992
≥1000 USD $1.087856
≥3000 USD $1.07279
Inventory: 832
Minimum: 1
-
+
Technical Details
Technical
Illumination Type Non-Illuminated
Contact Current(AC)-Max 10A
Contact (AC) Max Rating R Load 10A@250VAC
Contact Voltage(AC)-Max 250V
Switch Action MAINTAINED
Bushing Length 0.465 inch
Contact (AC) Max Power Rating R Load 0.75HP@250VAC
Bushing Diameter 0.469 inch
Actuator Finish NICKEL
Bushing Type 15/32-32
Switch Type TOGGLE SWITCH
Accessory Type On-Off Plate
Electrical Life 50000 Cycle(s)
Dielectric Withstanding Voltage 1000VRMS V
Termination Type QUICK CONNECT
Insulation Resistance 100000000Ohm
Switch Function SPST
Operating Temperature (Min) -17°C
Actuator Type TOGGLE BAT
Body Breadth 16.1036 mm
Operating Temperature (Max) 66°C
Body Length or Diameter 28.8036mm
HTS Code 8536.50.90.65
Color Silver
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 1998
Dimensions
Body Height 17.018mm
Actuator Length 0.687 inch
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Physical
Mount Hardware
Supply Chain
Factory Lead Time 6 Weeks
