VEP36US09
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

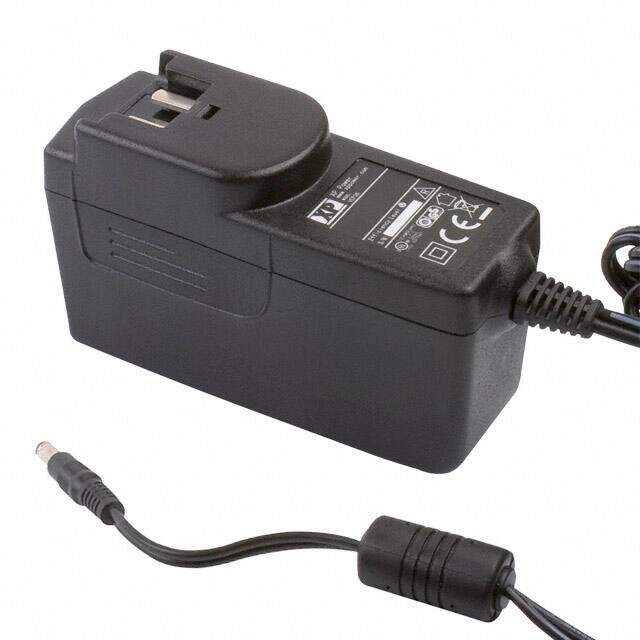

XP POWER VEP36US09 AC/DC Power Supply, Medical, Fixed, 1 Output, 90 V, 264 V, 27 W, 9 V
PDF
/
Inventory: 5487
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Wall
Weight 0.573lb 259.91g
Technical
Operating Temperature 0°C~40°C
Published 2011
Series VEP36 (36W)
Size / Dimension 4.02Lx1.42W x 2.09 H 102.0mmx36.0mmx53.0mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Max Operating Temperature 40°C
Min Operating Temperature 0°C
Applications ITE (Commercial), Medical
Power (Watts) 27W
Power Rating 27W
Max Power Dissipation 36W
Number of Outputs 1
Approval Agency CB, TUV, UL
Efficiency Level V
Max Output Current 3A
Voltage - Output 1 9V
Polarity Positive
Polarization Positive Center
Current - Output (Max) 3A
Voltage - Input 90V~264VAC
Output Current 3A
Input Type Multi-Blade (Sold Separately)
Output Power 27W
Voltage - Output 9V
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 3A
Max Output Power 27W
Form Wall Mount (Class II)
Region Utilized International
Cord Length 39.4 1.00m
Input Connector Multi-Blade
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Nominal Output Voltage 9V
No Load Power Consumption 300mW Max
Min Input Voltage (AC) 90V
Max Input Voltage (AC) 264V
Dimensions
Height 53.086mm
Length 102.108mm
Width 36.068mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
