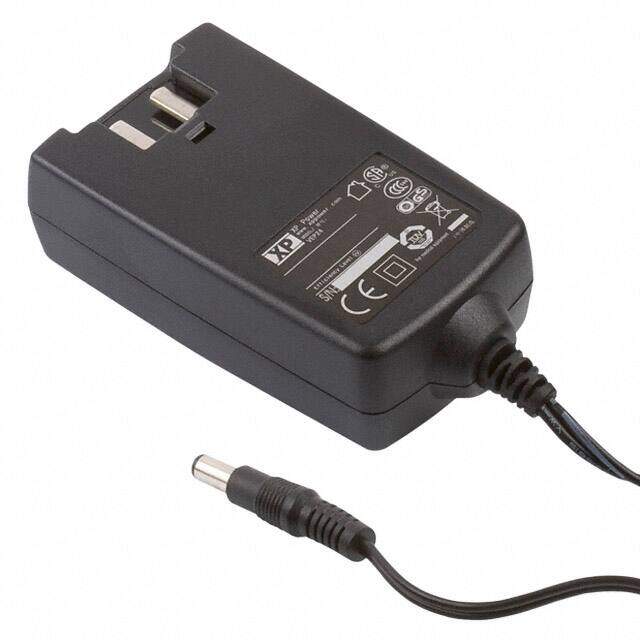

VEP24US09
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
XP POWER VEP24US09 AC/DC Power Supply, Medical, Fixed, 1 Output, 80 V, 264 V, 19.8 W, 9 V
PDF
/
Buying Options
Total Price: USD $19.08
Unit Price: USD $19.08
≥1 USD $19.08
≥10 USD $18
≥100 USD $16.98113
≥1000 USD $15.11315
Inventory: 1574
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 88mm
Length 47.9mm
Height 29mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 80V
Isolation Voltage 4kV
No Load Power Consumption 300mW Max
Nominal Output Voltage 9V
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Input Connector Multi-Blade
Cord Length 59 1.50m
Region Utilized International
Form Wall Mount (Class II)
Max Output Power 19.8W
Current - Output 1 2.2A
Max Input Voltage 264V
Min Input Voltage 80V
Voltage - Output 9V
Output Power 19.8W
Input Type Multi-Blade (Sold Separately)
Output Current 2.2A
Voltage - Input 80V~264VAC
Current - Output (Max) 2.2A
Polarization Positive Center
Polarity Positive
Voltage - Output 1 9V
Max Output Current 2.2A
Lead Length 1.8m
Efficiency Level IV
Approval Agency CB, TUV, UL
Number of Outputs 1
Max Power Dissipation 24W
Power Rating 19.8W
Power (Watts) 20W
Applications ITE (Commercial), Medical
Min Operating Temperature 0°C
Max Operating Temperature 40°C
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Size / Dimension 3.46Lx1.89W x 1.14 H 88.0mmx47.9mmx29.0mm
Series VEP24 (24W)
Published 2011
Operating Temperature 0°C~40°C
Physical
Weight 0.353lb 160.12g
Mount Wall
