VEP15US12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
XP POWER VEP15US12 AC/DC Power Supply, Medical, Fixed, 1 Output, 80 V, 264 V, 15 W, 12 V
PDF
/
Buying Options
Total Price: USD $18
Unit Price: USD $18
≥1 USD $18
≥10 USD $16.98113
≥100 USD $16.01994
≥1000 USD $14.25769
≥3000 USD $13.45065
Inventory: 5478
Minimum: 1
-
+
Technical Details
Physical
Mount Wall
Weight 0.265lb 120.2g
Technical
Operating Temperature 0°C~40°C
Published 2011
Series VEP15 (15W)
Size / Dimension 2.95Lx1.81W x 1.20 H 75.0mmx46.0mmx30.5mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Max Operating Temperature 40°C
Min Operating Temperature 0°C
Applications ITE (Commercial), Medical
Power (Watts) 15W
Power Rating 15W
Max Power Dissipation 15W
Number of Outputs 1
Approval Agency CB, TUV, UL
Efficiency Level V
Lead Length 1.8m
Max Output Current 1.25A
Voltage - Output 1 12V
Polarity Positive
Polarization Positive Center
Current - Output (Max) 1.25A
Voltage - Input 80V~264VAC
Output Current 1.25A
Input Type Multi-Blade (Sold Separately)
Output Power 15W
Voltage - Output 12V
Min Input Voltage 80V
Max Input Voltage 264V
Current - Output 1 1.25A
Max Output Power 15W
Form Wall Mount (Class II)
Region Utilized International
Cord Length 70.9 1.80m
Input Connector Multi-Blade
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Nominal Output Voltage 12V
No Load Power Consumption 300mW Max
Isolation Voltage 4kV
Min Input Voltage (AC) 80V
Max Input Voltage (AC) 264V
Dimensions
Height 30.48mm
Length 74.93mm
Width 45.974mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant

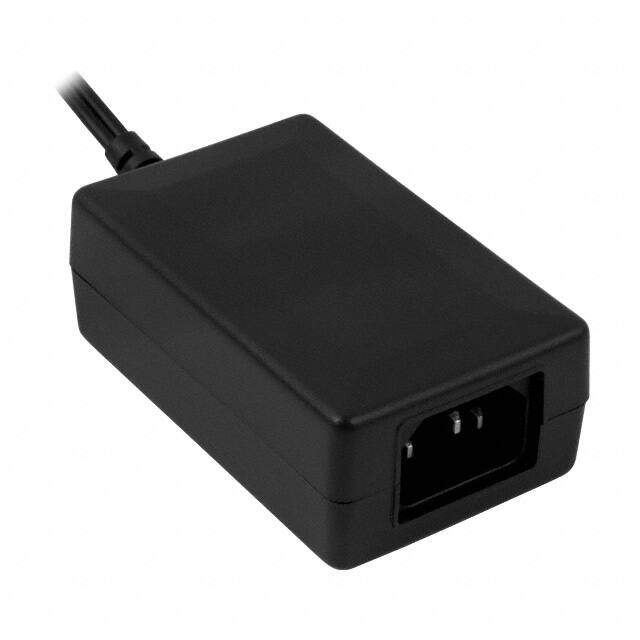

Alternative Model
