VEL18US240-US-JA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

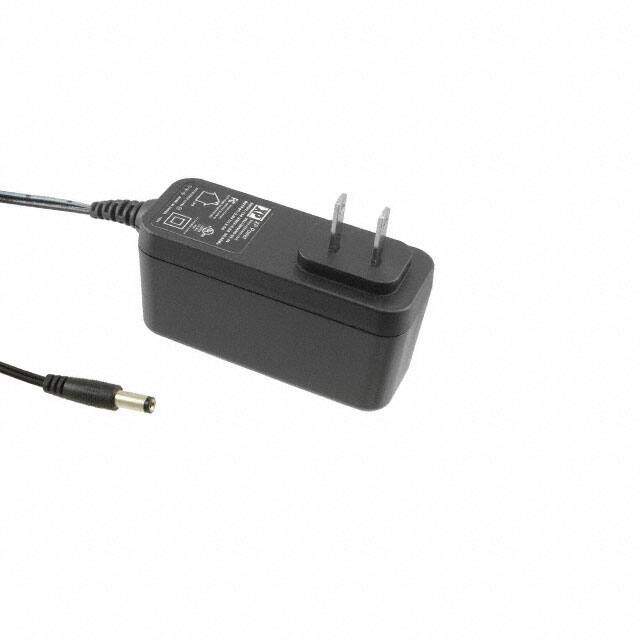

AC/DC WALL MOUNT ADAPTER 24V 18W
PDF
/
Buying Options
Total Price: USD $14.31
Unit Price: USD $14.31
≥1 USD $14.31
≥10 USD $13.5
≥100 USD $12.73585
Inventory: 252
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 47.498mm
Technical
No Load Power Consumption 100mW Max
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
Input Connector NEMA 1-15P
Cord Length 59 1.50m
Region Utilized North America
Form Wall Mount (Class II)
Max Output Power 18W
Current - Output 1 750mA
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 18W
Input Type Fixed Blade
Voltage - Input 90V~264VAC
Polarization Positive Center
Polarity Positive
Voltage - Output 1 24V
Max Output Current 750mA
Efficiency Level VI, CoC Tier 2
Approval Agency CB, TUV, UL
Number of Outputs 1
Max Power Dissipation 18W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 3.54Lx1.34W x 1.87 H 90.0mmx34.0mmx47.5mm
Series VEL18 (18W)
Published 2016
Operating Temperature 0°C~60°C
Physical
Weight 0.188lb 85.28g
Supply Chain
Factory Lead Time 18 Weeks
