VEH90PS24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

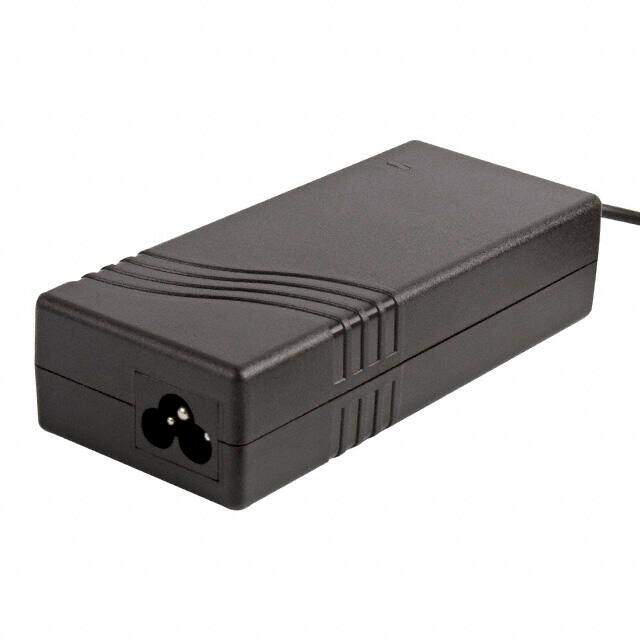

XP POWER VEH90PS24 AC/DC Power Supply, Desktop, Fixed, 1 Output, 90 V, 264 V, 90 W, 24 V
PDF
/
Buying Options
Total Price: USD $47.97
Unit Price: USD $47.97412
≥1 USD $47.97412
≥10 USD $45.25861
≥100 USD $42.6968
≥500 USD $40.28
≥1000 USD $38
≥3000 USD $35.84906
Inventory: 8029
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 30.226mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
No Load Power Consumption 500mW Max
Nominal Output Voltage 24V
Output Connector Power DIN, 4 Pin
Input Connector IEC 320-C6
Cord Length 48 1.22m
Region Utilized International
Form Desktop (Class I)
Max Output Power 90W
Current - Output 1 3.75A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 90W
Input Type Cord (Sold Separately)
Output Current 3.75A
Voltage - Input 90V~264VAC
Voltage - Output 1 24V
Max Output Current 3.75A
Efficiency Level V
Number of Outputs 1
Max Power Dissipation 90W
Power Rating 90W
Applications ITE (Commercial)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 5.24Lx2.28W x 1.19 H 133.0mmx58.0mmx30.3mm
Series VEH90 (90W)
Published 2011
Operating Temperature 0°C~60°C
Physical
Weight 0.816lb 370.13g
Number of Pins 4
