VEH60US12
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

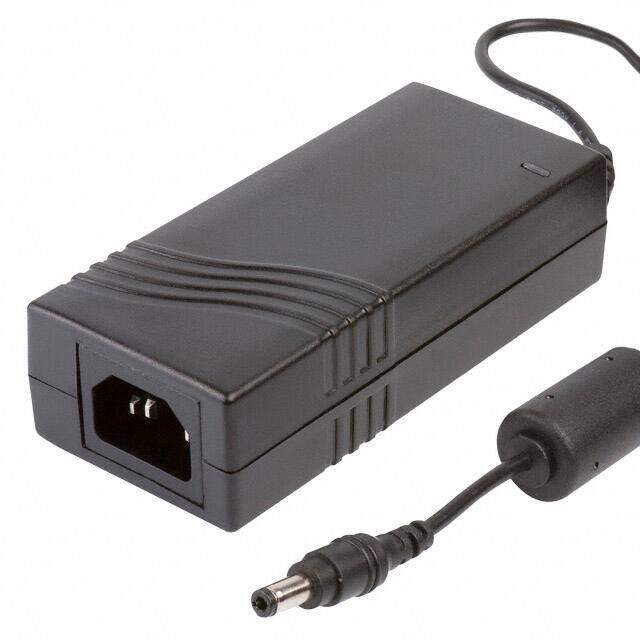

XP POWER VEH60US12 AC/DC Power Supply, Desktop, Fixed, 1 Output, 90 V, 264 V, 60 W, 12 V
PDF
/
Buying Options
Total Price: USD $22.26
Unit Price: USD $22.26
≥1 USD $22.26
≥10 USD $21
≥100 USD $19.81132
≥1000 USD $17.632
≥3000 USD $16.63397
Inventory: 4967
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height 32.004mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
No Load Power Consumption 500mW Max
Nominal Output Voltage 12V
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Input Connector IEC 320-C14
Cord Length 48 1.22m
Region Utilized International
Form Desktop (Class I)
Max Output Power 60W
Current - Output 1 5A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 60W
Input Type Cord (Sold Separately)
Output Current 5A
Voltage - Input 90V~264VAC
Polarization Positive Center
Polarity Positive
Voltage - Output 1 12V
Max Output Current 5A
Efficiency Level V
Number of Outputs 1
Max Power Dissipation 60W
Power Rating 60W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 4.62Lx2.09W x 1.26 H 117.4mmx53.0mmx32.0mm
Series VEH60 (60W)
Published 2009
Operating Temperature 0°C~60°C
Physical
Weight 0.761lb 345.18g
Mount Desktop
