VEF65US12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

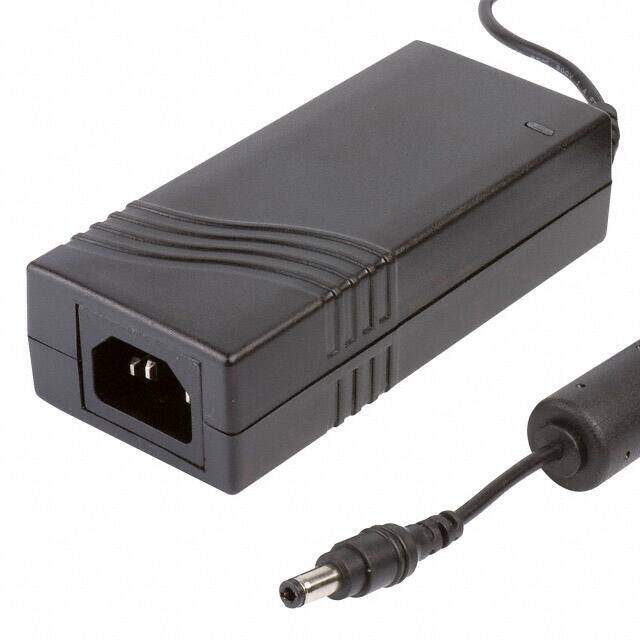

XP POWER VEF65US12AC/DC Power Supply, Level V, Mains Plug Sold Separately, 90 V, 264 V, 65 W, 12 V, 5.41 A
PDF
/
Buying Options
Total Price: USD $23.85
Unit Price: USD $23.85
≥1 USD $23.85
≥10 USD $22.5
≥100 USD $21.22642
≥500 USD $20.02492
≥1000 USD $18.89143
≥3000 USD $17.82211
Inventory: 3123
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 31.242mm
Technical
No Load Power Consumption 300mW Max
Nominal Output Voltage 12V
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Input Connector IEC 320-C14
Cord Length 47.2 1.20m
Region Utilized International
Form Desktop (Class I)
Max Output Power 65W
Current - Output 1 5.41A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 65W
Input Type Cord (Sold Separately)
Voltage - Input 90V~264VAC
Polarization Positive Center
Polarity Positive
Voltage - Output 1 12V
Max Output Current 5.41A
Efficiency Level V
Number of Outputs 1
Max Power Dissipation 65W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 4.58Lx2.06W x 1.23 H 116.3mmx52.4mmx31.3mm
Series VEF65 (65W)
Published 2013
Operating Temperature -10°C~60°C
Physical
Weight 0.761lb 345.18g
Mount Desktop
