VEF50US24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

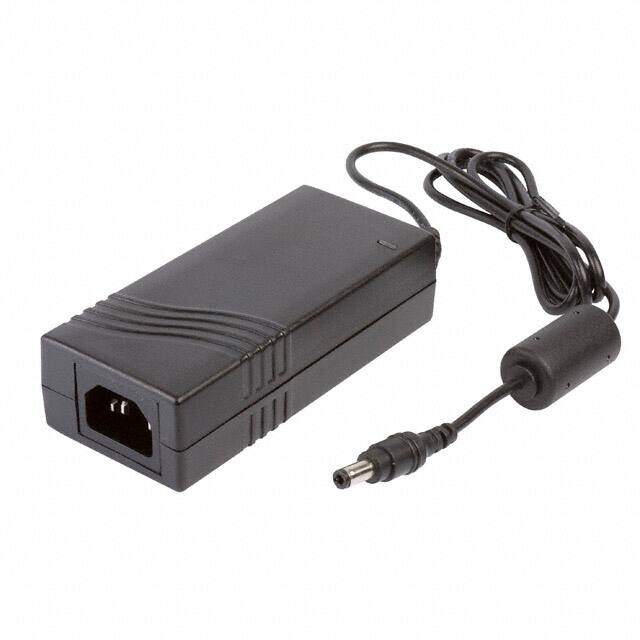

XP POWER VEF50US24AC/DC Power Supply, Level V, Mains Plug Sold Separately, 90 V, 264 V, 50 W, 24 V, 2.08 A
PDF
/
Buying Options
Total Price: USD $24.8
Unit Price: USD $24.804
≥1 USD $24.804
≥10 USD $23.4
≥100 USD $22.07547
≥1000 USD $19.64709
≥3000 USD $18.53499
Inventory: 7131
Minimum: 1
-
+
Technical Details
Physical
Mount Plug-In
Weight 0.761lb 345.18g
Technical
Operating Temperature -10°C~60°C
Published 2013
Series VEF50 (50W)
Size / Dimension 4.58Lx2.06W x 1.23 H 116.3mmx52.4mmx31.3mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Applications ITE (Commercial)
Max Power Dissipation 50W
Number of Outputs 1
Efficiency Level V
Max Output Current 2.08A
Voltage - Output 1 24V
Polarity Positive
Polarization Positive Center
Voltage - Input 90V~264VAC
Input Type Cord (Sold Separately)
Output Power 50W
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 2.08A
Max Output Power 50W
Form Desktop (Class I)
Region Utilized International
Cord Length 47.2 1.20m
Input Connector IEC 320-C14
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Nominal Output Voltage 24V
No Load Power Consumption 300mW Max
Dimensions
Height 31.242mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
