AHM250PS24T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

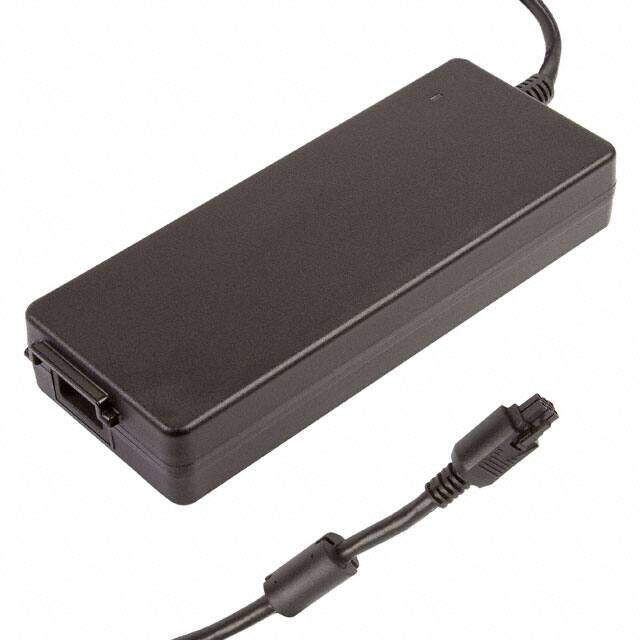

XP POWER AHM250PS24T.ADAPTOR, AC-DC, MEDICAL, 24V, 10.41A
PDF
/
Buying Options
Total Price: USD $174.16
Unit Price: USD $174.158
≥1 USD $174.158
≥10 USD $164.3
≥100 USD $155
≥500 USD $146.22642
≥1000 USD $137.94945
≥3000 USD $130.14099
Inventory: 7875
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 36.83mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 80V
No Load Power Consumption 500mW Max
Nominal Output Voltage 24V
Output Connector Rectangular, 6 Position
Input Connector IEC 320-C14
Cord Length 35.4 0.9m
Region Utilized International
Form Desktop (Class I)
Max Output Power 250W
Current - Output 1 10.41A
Max Input Voltage 264V
Min Input Voltage 80V
Output Power 250W
Input Type Cord (Sold Separately)
Voltage - Input 80V~264VAC
Voltage - Output 1 24V
Max Output Current 10.41A
Efficiency Level V
Approval Agency CB, TUV, UL
Number of Outputs 1
Max Power Dissipation 250W
Applications ITE (Commercial), Medical
Connector Type Connector, Rectangular
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Size / Dimension 8.80Lx3.48W x 1.45 H 223.0mmx88.5mmx37.0mm
Series AHM250 (250W)
Published 2006
Operating Temperature 0°C~60°C
Physical
Weight 2.3lbs 1kg
Mount Desktop
