AHM150PS12C2-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

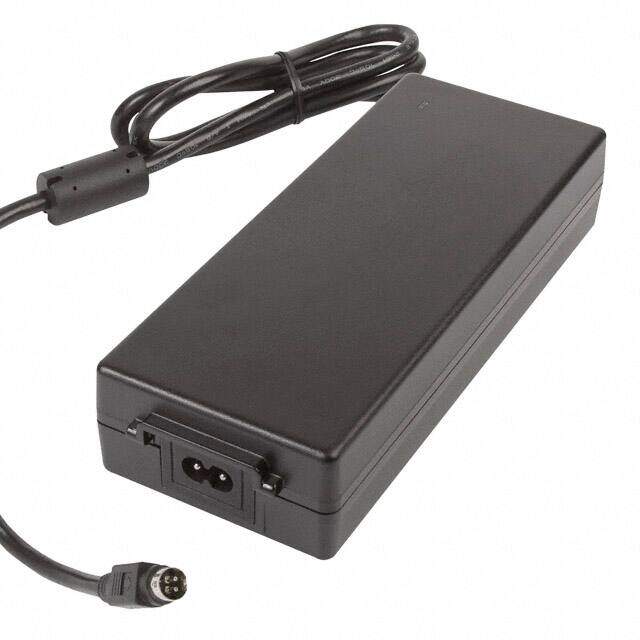

XP POWER AHM150PS12C2-8AC/DC Power Supply, Medical, Fixed, 1 Output, 80 V, 264 V, 150 W, 12 V
PDF
/
Inventory: 2246
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 36.83mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 80V
No Load Power Consumption 500mW Max
Output Connector Power DIN, 4 Pin
Input Connector IEC 320-C8
Cord Length 35.4 0.9m
Region Utilized International
Form Desktop (Class II)
Max Output Power 150W
Current - Output 1 12.5A
Max Input Voltage 264V
Min Input Voltage 80V
Output Power 150W
Input Type Cord (Sold Separately)
Output Current 12.5A
Voltage - Input 80V~264VAC
Voltage - Output 1 12V
Max Output Current 12.5A
Efficiency Level V
Approval Agency CB, TUV, UL
Number of Outputs 1
Max Power Dissipation 150W
Applications ITE (Commercial), Medical
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Size / Dimension 7.80Lx3.15W x 1.45 H 200.0mmx80.0mmx37.0mm
Series AHM150 (150W)
Published 2011
Operating Temperature 0°C~60°C
Physical
Weight 1.3lbs 589.7g
Mount External
