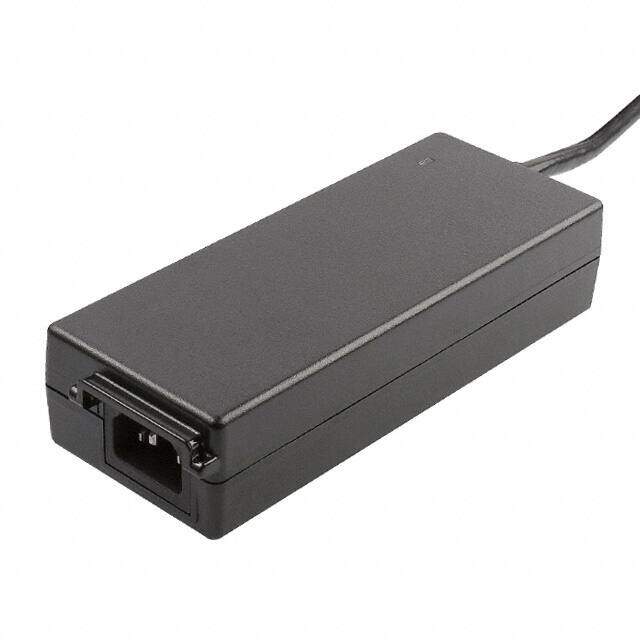

AHM150PS12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
XP POWER AHM150PS12AC/DC Power Supply, Medical, Mains Plug Sold Separately, 80 V, 264 V, 150 W, 12 V, 12.5 A
PDF
/
Buying Options
Total Price: USD $106.74
Unit Price: USD $106.742
≥1 USD $106.742
≥10 USD $100.7
≥100 USD $95
≥1000 USD $84.54966
Inventory: 3990
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 36.83mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 80V
No Load Power Consumption 500mW Max
Nominal Output Voltage 12V
Output Connector Power DIN, 4 Pin
Input Connector IEC 320-C14
Cord Length 35.4 0.9m
Region Utilized International
Form Desktop (Class I)
Max Output Power 150W
Current - Output 1 12.5A
Max Input Voltage 264V
Min Input Voltage 80V
Output Power 150W
Input Type Cord (Sold Separately)
Output Current 12.5A
Voltage - Input 80V~264VAC
Voltage - Output 1 12V
Max Output Current 12.5A
Lead Length 900mm
Efficiency Level V
Approval Agency CB, TUV, UL
Number of Outputs 1
Max Power Dissipation 150W
Power Rating 150W
Applications ITE (Commercial), Medical
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Size / Dimension 7.80Lx3.15W x 1.45 H 200.0mmx80.0mmx37.0mm
Series AHM150 (150W)
Published 2011
Operating Temperature 0°C~60°C
Physical
Weight 1.3lbs 589.7g
Mount Plug-In
