AHM100PS48C2-8
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

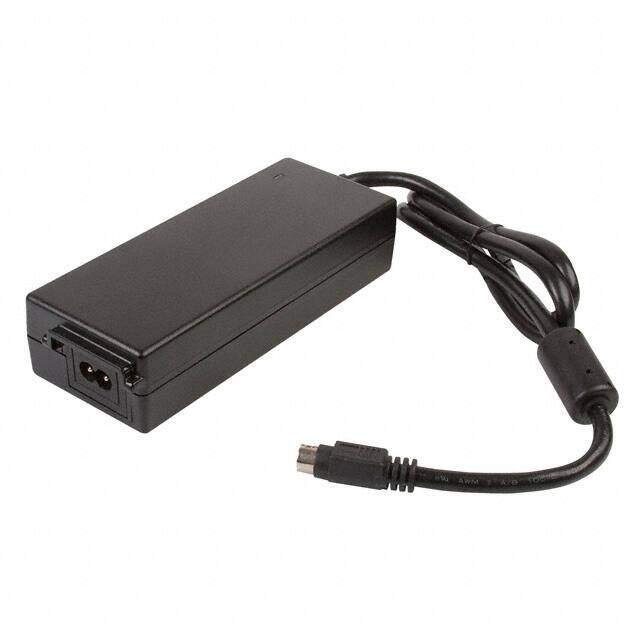

XP POWER AHM100PS48C2-8AC/DC Power Supply, Medical, Fixed, 1 Output, 80 V, 264 V, 100 W, 48 V
PDF
/
Buying Options
Total Price: USD $87
Unit Price: USD $87
≥1 USD $87
≥10 USD $82.07547
≥100 USD $77.42969
≥500 USD $73.04688
≥1000 USD $68.91215
≥3000 USD $65.01146
Inventory: 3955
Minimum: 1
-
+
Technical Details
Physical
Mount External
Package / Case 100
Weight 1.1lbs 499g
Technical
Operating Temperature 0°C~60°C
Published 2011
Series AHM100 (100W)
Size / Dimension 6.29Lx2.52W x 1.45 H 160.0mmx64.0mmx37.0mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Applications ITE (Commercial), Medical
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CB, TUV, UL
Efficiency Level V
Max Output Current 2.08A
Voltage - Output 1 48V
Voltage - Input 80V~264VAC
Output Current 2.08A
Input Type Cord (Sold Separately)
Output Power 100W
Min Input Voltage 80V
Max Input Voltage 264V
Current - Output 1 2.08A
Max Output Power 100W
Form Desktop (Class II)
Region Utilized International
Cord Length 35.4 0.9m
Input Connector IEC 320-C8
Output Connector Power DIN, 4 Pin
Nominal Output Voltage 48V
No Load Power Consumption 500mW Max
Min Input Voltage (AC) 80V
Max Input Voltage (AC) 264V
Dimensions
Height 36.83mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
