AFM60US15
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

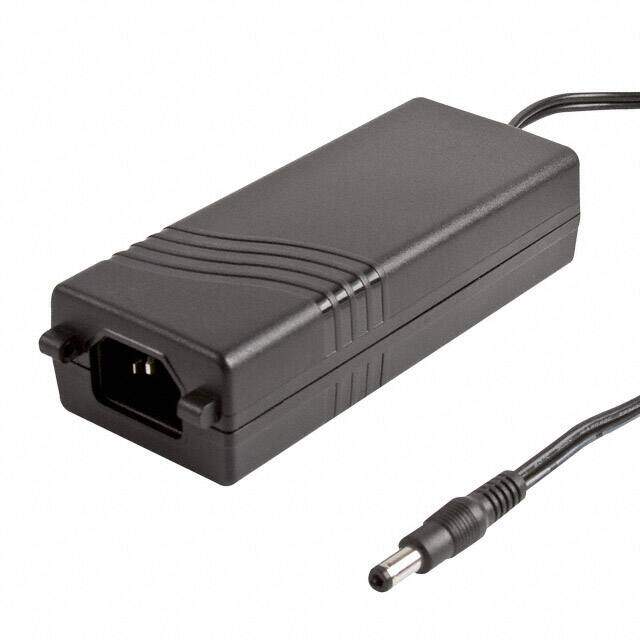

ADAPTOR, AC-DC, MEDICAL, 15V, 4A
PDF
/
Buying Options
Total Price: USD $51.69
Unit Price: USD $51.6856
≥1 USD $51.6856
≥10 USD $48.76
≥100 USD $46
≥500 USD $43.39623
≥1000 USD $40.93984
Inventory: 2370
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 34.036mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 80V
Nominal Output Voltage 15V
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Input Connector IEC 320-C14
Cord Length 37.4 0.95m
Region Utilized International
Form Desktop (Class I)
Max Output Power 60W
Current - Output 1 4A
Max Input Voltage 264V
Min Input Voltage 80V
Output Power 60W
Input Type Cord (Sold Separately)
Output Current 4A
Voltage - Input 80V~264VAC
Polarization Positive Center
Polarity Positive
Voltage - Output 1 15V
Max Output Current 4A
Efficiency Level V
Approval Agency CB, TUV, UL
Number of Outputs 1
Max Power Dissipation 60W
Power Rating 60W
Applications ITE (Commercial), Medical
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Size / Dimension 4.92Lx2.44W x 1.34 H 125.0mmx62.0mmx34.0mm
Series AFM60 (60W)
Published 2012
Operating Temperature 0°C~60°C
Physical
Weight 0.78lb 353.8g
Alternative Model
