AFM30US24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

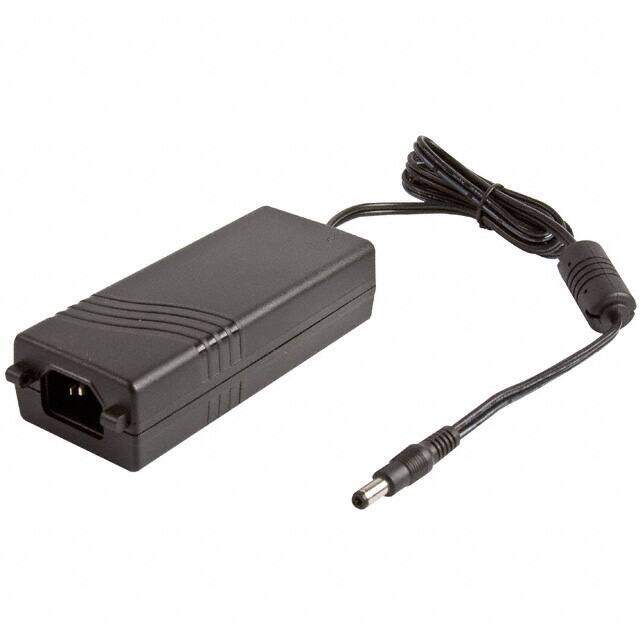

XP POWER AFM30US24AC/DC Power Supply, Medical, Fixed, 1 Output, 80 V, 264 V, 30 W, 24 V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Desktop
Weight 0.565lb 256.28g
Technical
Operating Temperature 0°C~60°C
Published 2013
Series AFM30 (30W)
Size / Dimension 4.76Lx1.97W x 1.21 H 121.0mmx50.0mmx30.8mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Applications ITE (Commercial), Medical
Max Power Dissipation 30W
Number of Outputs 1
Approval Agency CB, TUV, UL
Efficiency Level V
Max Output Current 1.25A
Voltage - Output 1 24V
Polarity Positive
Polarization Positive Center
Voltage - Input 80V~264VAC
Output Current 1.25A
Input Type Cord (Sold Separately)
Output Power 30W
Min Input Voltage 80V
Max Input Voltage 264V
Current - Output 1 1.25A
Max Output Power 30W
Form Desktop (Class I)
Region Utilized International
Cord Length 37.4 0.95m
Input Connector IEC 320-C14
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Nominal Output Voltage 24V
Min Input Voltage (AC) 80V
Max Input Voltage (AC) 264V
Dimensions
Height 30.734mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
