AEL40US18
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

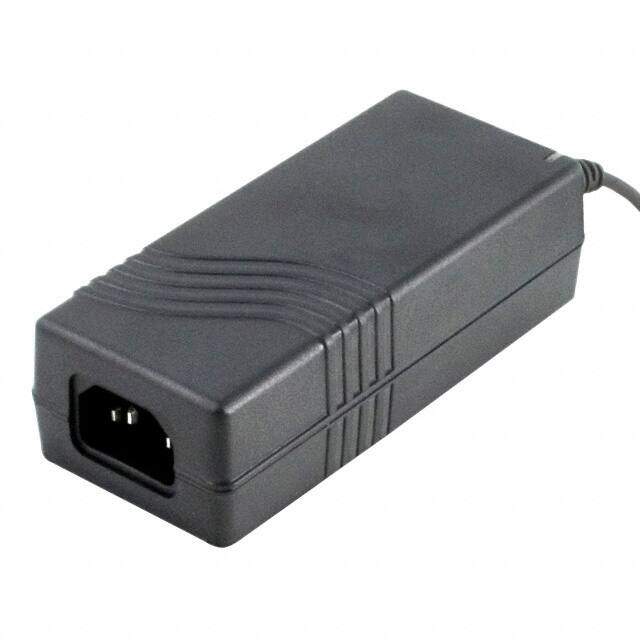

AC/DC DESKTOP ADAPTER 18V 40W
PDF
/
Inventory: 3978
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Desktop
Weight 0.64lb 290.3g
Technical
Operating Temperature -20°C~60°C
Published 2011
Series AEL40 (40W)
Size / Dimension 4.65Lx2.05W x 1.36 H 118.0mmx52.0mmx34.5mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Applications ITE (Commercial)
Power (Watts) 40W
Power Rating 40W
Max Power Dissipation 40W
Number of Outputs 1
Approval Agency CB, TUV, UL
Efficiency Level V
Max Output Current 2.22A
Polarity Positive
Polarization Positive Center
Current - Output (Max) 2.22A
Voltage - Input 90V~264VAC
Output Current 2.22A
Input Type Cord (Sold Separately)
Output Power 40W
Voltage - Output 18V
Max Output Power 40W
Form Desktop (Class I)
Region Utilized International
Cord Length 48 1.22m
Input Connector IEC 320-C14
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Nominal Output Voltage 18V
No Load Power Consumption 500mW Max
Dimensions
Height 34.544mm
Length 118.11mm
Width 52.07mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
