AEL15US36
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

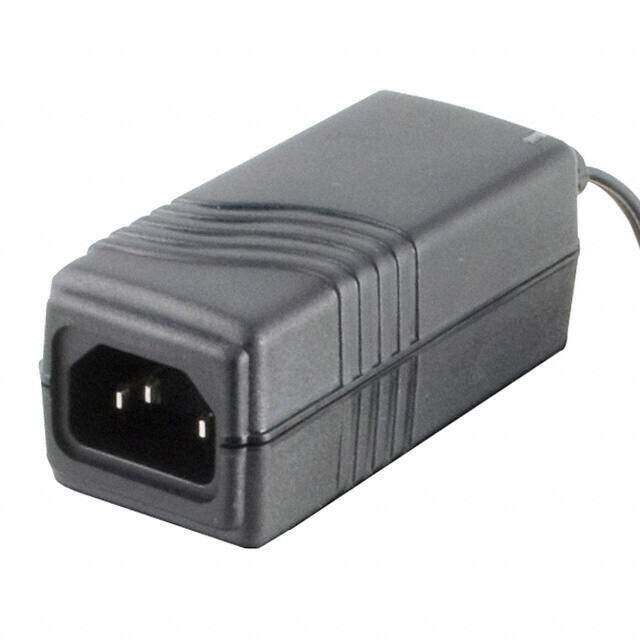

XP POWER AEL15US36AC/DC Power Supply, Level V, Mains Plug Sold Separately, 90 V, 264 V, 15 W, 36 V, 420 mA
PDF
/
Inventory: 3124
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Desktop
Weight 0.364lb 165.11g
Technical
Operating Temperature -20°C~60°C
Published 2005
Series AEL15 (15W)
Size / Dimension 3.58Lx1.50W x 1.42 H 91.0mmx38.0mmx36.0mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Applications ITE (Commercial)
Power (Watts) 15W
Power Rating 15W
Max Power Dissipation 15W
Frequency 63Hz
Number of Outputs 1
Approval Agency CB, TUV, UL
Efficiency Level IV
Lead Length 1.22m
Max Output Current 420mA
Voltage - Output 1 36V
Polarity Positive
Polarization Positive Center
Current - Output (Max) 420mA
Voltage - Input 90V~264VAC
Output Current 420mA
Input Type Cord (Sold Separately)
Output Power 15W
Voltage - Output 36V
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 420mA
Max Output Power 15W
Form Desktop (Class I)
Region Utilized International
Cord Length 48 1.22m
Input Connector IEC 320-C14
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Nominal Output Voltage 36V
No Load Power Consumption 500mW Max
Min Input Voltage (AC) 90V
Max Input Voltage (AC) 264V
Dimensions
Height 36.068mm
Length 90.932mm
Width 38.1mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
