AEB70US24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

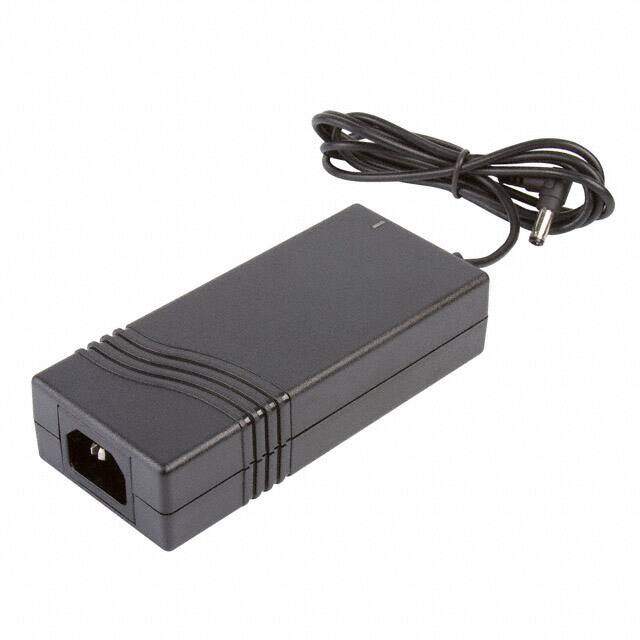

XP POWER - AEB70US24 - AC/DC Power Supply, ITE, 1 Output, 72 W, 24 V, 3 A
PDF
/
Buying Options
Total Price: USD $86.8
Unit Price: USD $86.8
≥1 USD $86.8
≥10 USD $81.88679
≥100 USD $77.25169
≥1000 USD $68.75373
≥3000 USD $64.86201
Inventory: 8114
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 30.48mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
No Load Power Consumption 500mW Max
Output Connector Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector IEC 320-C14
Cord Length 48 1.22m
Region Utilized International
Form Desktop (Class I)
Max Output Power 72W
Current - Output 1 3A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 72W
Input Type Cord (Sold Separately)
Output Current 3A
Voltage - Input 90V~264VAC
Polarization Positive Center
Polarity Positive
Voltage - Output 1 24V
Max Output Current 3A
Efficiency Level V
Number of Outputs 1
Max Power Dissipation 72W
Power Rating 72W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Size / Dimension 5.20Lx2.28W x 1.20 H 132.0mmx58.0mmx30.5mm
Series AEB70 (70W)
Published 2005
Operating Temperature 0°C~60°C
Physical
Weight 0.761lb 345.18g
Mount Plug-In
