AEB45US48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

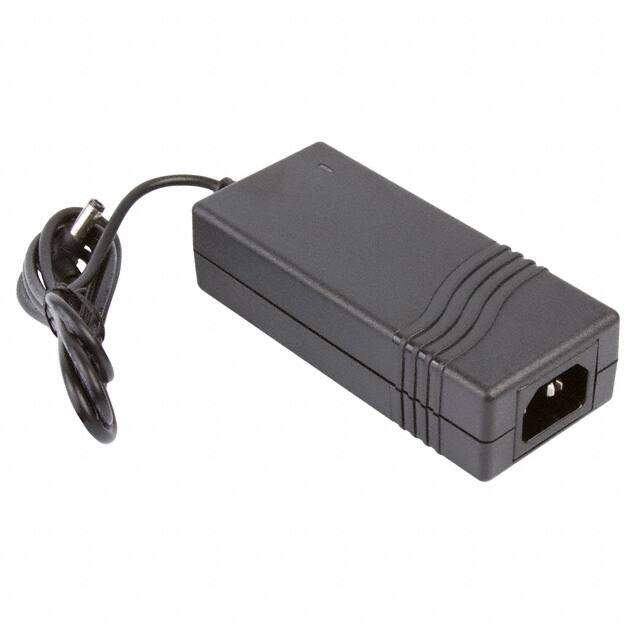

XP POWER AEB45US48 AC-DC CONVERTER, EXTERNAL PLUG IN, 1 O/P, 48W, 1A, 48V
PDF
/
Buying Options
Total Price: USD $8.48
Unit Price: USD $8.48
≥1 USD $8.48
≥10 USD $8
≥100 USD $7.54717
≥1000 USD $6.71695
≥3000 USD $6.33675
Inventory: 8003
Minimum: 1
-
+
Technical Details
Physical
Mount Plug-In
Weight 0.618lb 280.32g
Technical
Operating Temperature 0°C~60°C
Published 2009
Series AEB45 (45W)
Size / Dimension 4.72Lx2.05W x 1.22 H 120.0mmx52.0mmx31.0mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Applications ITE (Commercial)
Power Rating 48W
Max Power Dissipation 48W
Number of Outputs 1
Efficiency Level IV
Max Output Current 1A
Voltage - Output 1 48V
Polarity Positive
Polarization Positive Center
Voltage - Input 90V~264VAC
Output Current 1A
Input Type Cord (Sold Separately)
Output Power 48W
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 1A
Max Output Power 48W
Form Desktop (Class I)
Region Utilized International
Cord Length 48 1.22m
Input Connector IEC 320-C14
Output Connector Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Nominal Output Voltage 48V
No Load Power Consumption 500mW Max
Min Input Voltage (AC) 90V
Max Input Voltage (AC) 264V
Dimensions
Height 30.988mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
