AEB100PS12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

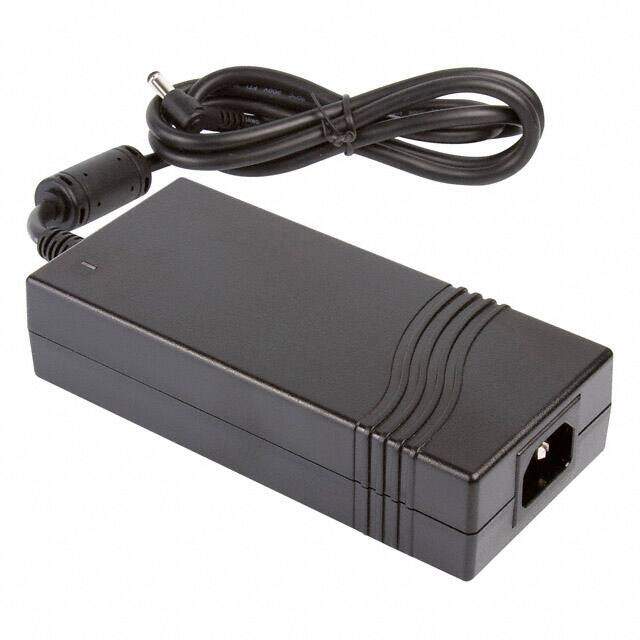

XP POWER AEB100PS12 AC-DC CONVERTER, EXTERNAL PLUG IN, 1 O/P, 100W, 12V
PDF
/
Inventory: 9270
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 35.052mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
No Load Power Consumption 500mW Max
Nominal Output Voltage 12V
Output Connector Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector IEC 320-C14
Cord Length 48 1.22m
Region Utilized International
Form Desktop (Class I)
Max Output Power 100W
Current - Output 1 8.34A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 100W
Input Type Cord (Sold Separately)
Output Current 8.34A
Voltage - Input 90V~264VAC
Polarization Positive Center
Polarity Positive
Voltage - Output 1 12V
Max Output Current 8.34A
Efficiency Level IV
Number of Outputs 1
Max Power Dissipation 100W
Power Rating 100W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Size / Dimension 5.90Lx2.76W x 1.38 H 150.0mmx70.0mmx35.0mm
Series AEB100 (100W)
Published 2009
Operating Temperature 0°C~60°C
Physical
Weight 1.4lbs 635g
Mount Plug-In
