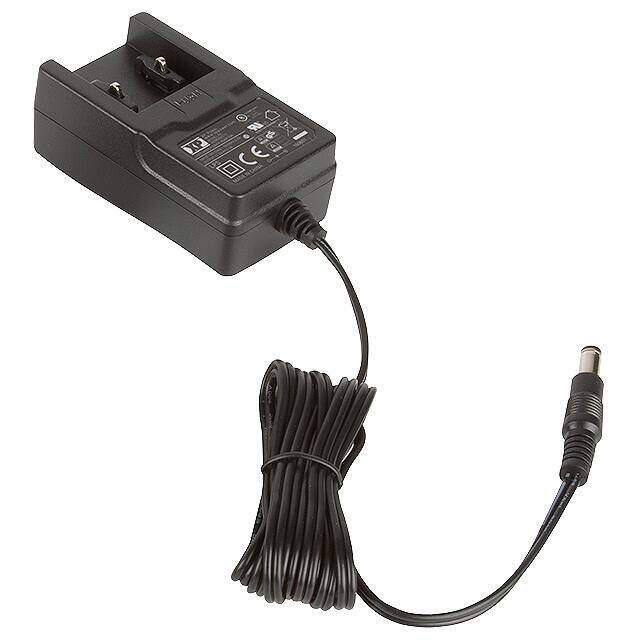

ACM06US09

XP Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description AC/DC WALL MOUNT ADAPTER 9V 5.4W
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 30.734mm

Technical

No Load Power Consumption 75mW Max
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm
Input Connector Multi-Blade
Cord Length 70.9 1.80m
Region Utilized International
Form Wall Mount (Class II)
Voltage - Output 9V
Output Power 6W
Input Type Multi-Blade (Sold Separately)
Voltage - Input 90V~264VAC
Max Output Current 600mA
Efficiency Level VI, CoC Tier 2
Approval Agency CB, CE
Max Power Dissipation 6W
Power (Watts) 5.4W
Applications ITE (Commercial), Medical
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 2.89Lx1.67W x 1.21 H 73.5mmx42.5mmx30.7mm
Series ACM06 (6W)
Published 2016
Operating Temperature 0°C~60°C

Physical

Weight 0.176lb 79.83g

Supply Chain

Factory Lead Time 19 Weeks
