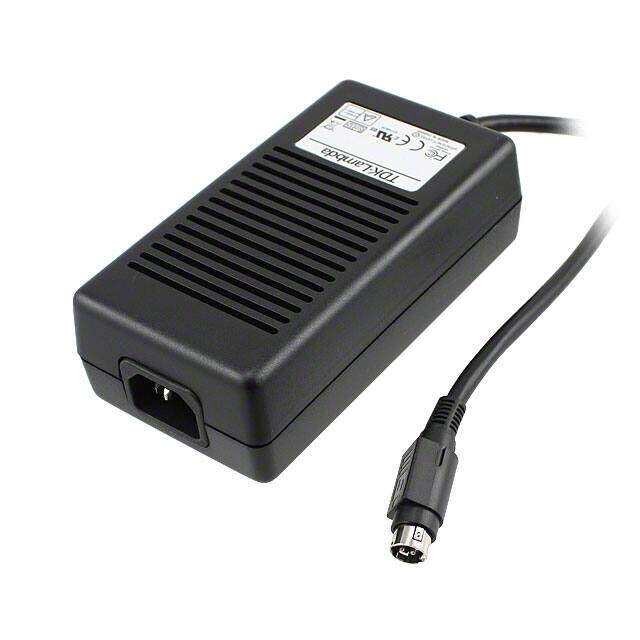

DTM65PW150C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC DESKTOP ADAPTER 15V 60W
PDF
/
Inventory: 5206
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 68.834mm
Length 132mm
Height 39.878mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
No Load Power Consumption 500mW Max
Output Connector Power DIN, 4 Pin
Input Connector IEC 320-C14
Cord Length 41.34 1.05m
Region Utilized International
Form Desktop (Class I)
Max Output Power 60W
Current - Output 1 4A
Max Input Voltage 264V
Min Input Voltage 90V
Voltage - Output 15V
Output Power 60W
Input Type Cord (Sold Separately)
Output Current 4A
Cable Length 1.05m
Voltage - Input 90V~264VAC
Current - Output (Max) 4A
Voltage - Output 1 15V
Max Output Current 4A
Output Type Fixed
Efficiency Level V
Approval Agency CE
Number of Outputs 1
Depth 69mm
Max Power Dissipation 60W
Power Rating 60W
Power (Watts) 60W
Applications Medical
Min Operating Temperature 0°C
Max Operating Temperature 50°C
Connector Type Power
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 5.20Lx2.71W x 1.57 H 132.0mmx69.0mmx40.0mm
Series DTM65-C (65W)
Published 2012
Operating Temperature 0°C~50°C
Physical
Weight 1lb 453.59g
Supply Chain
Factory Lead Time 15 Weeks
