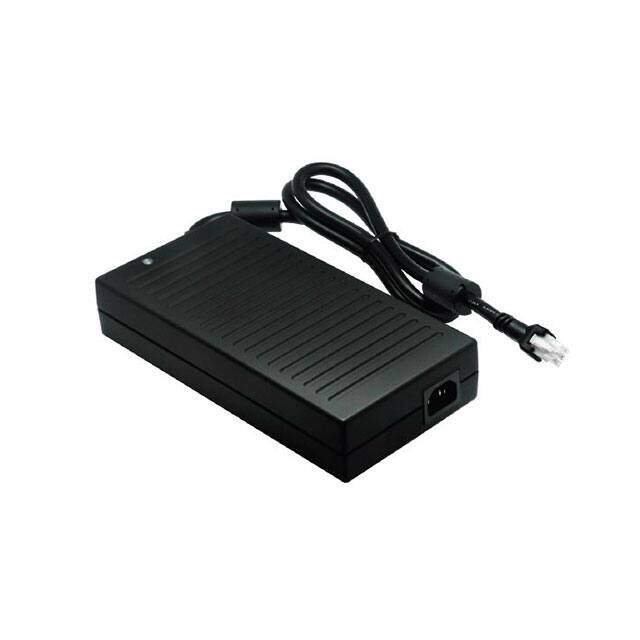

DTM300PW480D2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC DESKTOP ADAPTER 48V 300W
PDF
/
Buying Options
Total Price: USD $237.14
Unit Price: USD $237.142646
≥1 USD $237.142646
≥10 USD $223.719486
≥100 USD $211.056121
≥500 USD $199.109539
≥1000 USD $187.839188
Inventory: 1180
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Technical
Operating Temperature -30°C~60°C
Published 2016
Series DTM300-D (300W)
Size / Dimension 8.74Lx4.41W x 1.77 H 222.0mmx112.0mmx45.0mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Applications ITE (Commercial), Medical
Power (Watts) 300W
Approval Agency CE
Efficiency Level VI
Current - Output (Max) 6.25A
Voltage - Input 90V~264VAC
Input Type Cord (Sold Separately)
Output Power 300W
Voltage - Output 48V
Form Desktop (Class II)
Region Utilized International
Cord Length 31.5 0.8m
Input Connector IEC 320-C18
Output Connector DIN, 10 Pin
No Load Power Consumption 500mW Max
Compliance
RoHS Status RoHS Compliant
