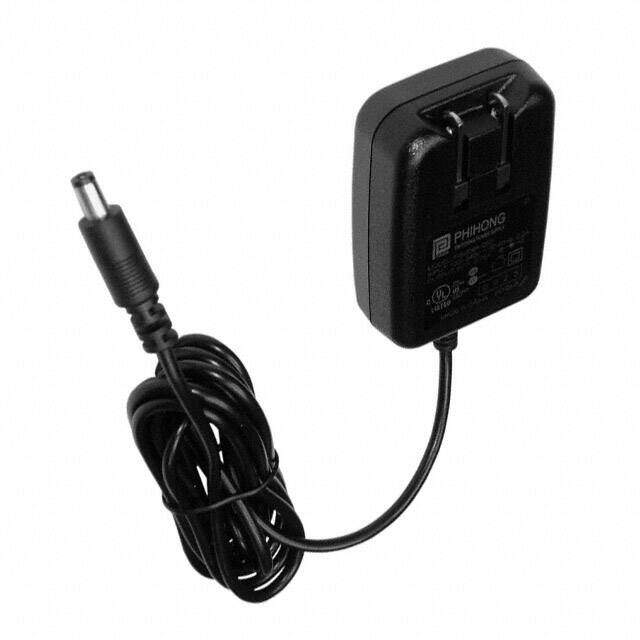

PSM04A-050(STD)
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MOUNT ADAPTER 5V 3.8W
PDF
/
Inventory: 8314
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 48mm
Height 24.892mm
Technical
No Load Power Consumption 500mW Max
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector NEMA 1-15P
Cord Length 70.9 1.80m
Region Utilized North America
Form Wall Mount (Class II)
Total Power Output-Max 3.75W
Current - Output 1 750mA
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 4W
Input Type Fixed Blade
Voltage - Input 90V~264VAC
Polarization Positive Center
Analog IC - Other Type AC-DC REGULATED POWER SUPPLY MODULE
Polarity Positive
Voltage - Output 1 5V
Max Output Current 750mA
Output Voltage 5V
Efficiency Level IV
Approval Agency cULus
Number of Outputs 1
Reach Compliance Code unknown
Max Power Dissipation 4W
Subcategory Power Supply Modules
Power (Watts) 3.8W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 2.73Lx1.89W x 0.98 H 69.4mmx48.0mmx25.0mm
Series PSM04A (4W)
Published 2007
Operating Temperature 0°C~45°C
Physical
Weight 0.32lb 145.15g
Mount Wall
