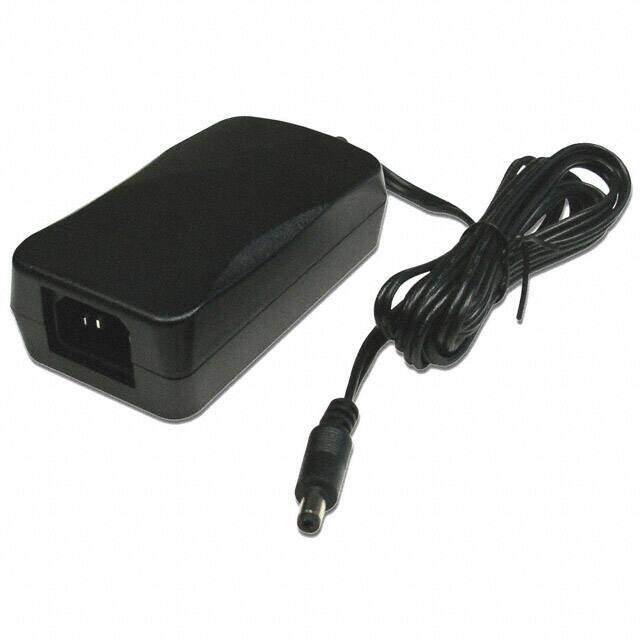

PSC30U-050
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC DESKTOP ADAPTER 5V 20W
PDF
/
Inventory: 1572
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Desktop
Weight 0.536lb 243.13g
Technical
Operating Temperature 0°C~40°C
Published 2012
Series PSC30U (30W)
Size / Dimension 3.88Lx2.17W x 1.24 H 98.5mmx55.0mmx31.5mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Applications ITE (Commercial)
Power (Watts) 20W
Subcategory Power Supply Modules
Max Power Dissipation 20W
Approval Agency cULus
Efficiency Level IV
Output Voltage 5V
Max Output Current 4A
Polarity Positive
Analog IC - Other Type AC-DC REGULATED POWER SUPPLY MODULE
Polarization Positive Center
Voltage - Input 90V~264VAC
Input Type Cord (Sold Separately)
Voltage - Output 5V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Form Desktop (Class I)
Region Utilized International
Cord Length 59 1.50m
Input Connector IEC 320-C14
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
No Load Power Consumption 500mW Max
Ripple Voltage (Main Out) 0.01768Vrms
Dimensions
Height 31.496mm
Width 55mm
Compliance
RoHS Status RoHS Compliant
