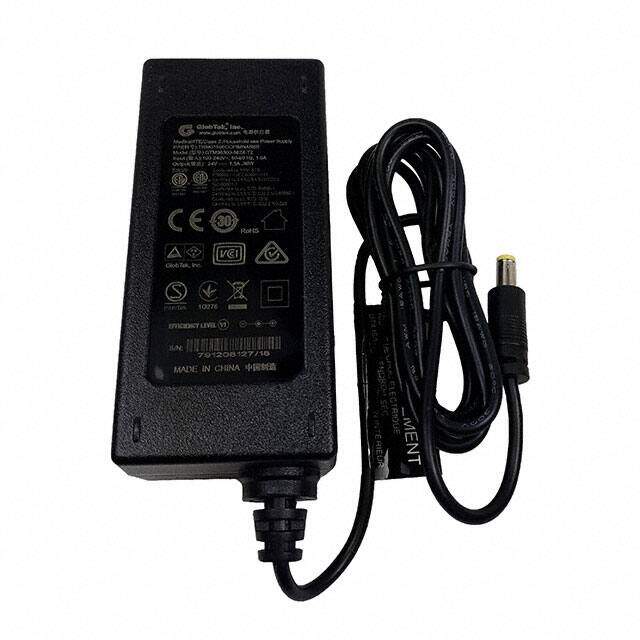

TR9KI1500CCPIMNAR6B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
36W, 24V 1.5A, DESKTOP/EXTERNAL,
PDF
/
Inventory: 5473
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Region Utilized International
Form Desktop (Class II)
Voltage - Output 24V
Input Type Cord (Sold Separately)
Voltage - Input 90V~264VAC
Current - Output (Max) 1.5A
Polarization Positive Center
Efficiency Level VI
Approval Agency CB, CE, cETLus, EAC, LPS, PSE, RCM, S-Mark, UkrSEPRO, VCCI
Power (Watts) 36W
Applications Household Appliances, ITE (Commercial), Medical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 4.13Lx1.97W x 1.40 H 105.0mmx50.0mmx35.5mm
Series GTM96300-36VV-T2
Operating Temperature -20°C~40°C
No Load Power Consumption 75mW Max
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Input Connector IEC 320-C8
Cord Length 59 1.50m
Supply Chain
Factory Lead Time 16 Weeks
Compliance
RoHS Status ROHS3 Compliant
