SWI24-24-E-P6R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

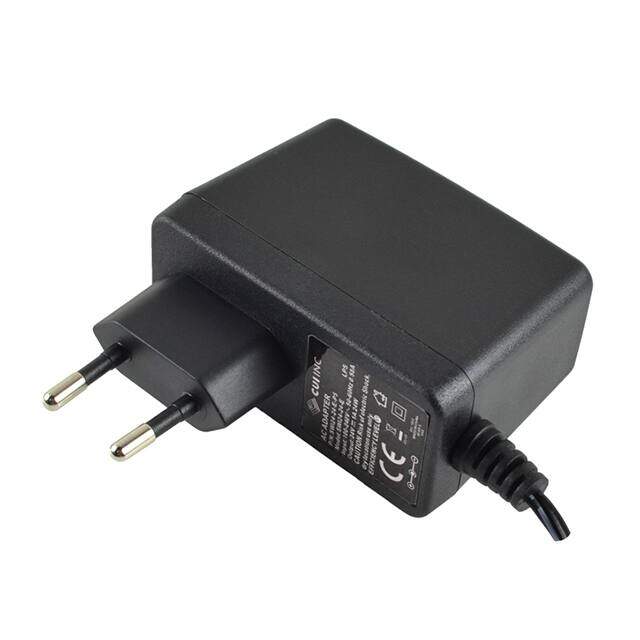

AC/DC WALL MOUNT ADAPTER 24V 24W
PDF
/
Inventory: 3099
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 70.104mm
Technical
No Load Power Consumption 100mW Max
Output Connector Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector CEE 7/16
Cord Length 59 1.50m
Region Utilized Europe
Form Wall Mount (Class II)
Voltage - Output 24V
Input Type Fixed Blade
Voltage - Input 90V~264VAC
Polarization Positive Center
Polarity Positive
Max Output Current 1A
Efficiency Level VI, CoC Tier 2
Approval Agency CE
Max Power Dissipation 24W
Power (Watts) 24W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 2.83Lx1.34W x 2.76 H 72.0mmx34.0mmx70.0mm
Series SWI24-E (24W)
Published 2016
Operating Temperature 0°C~40°C
Physical
Weight 0.327lb 148.32g
Supply Chain
Factory Lead Time 20 Weeks
