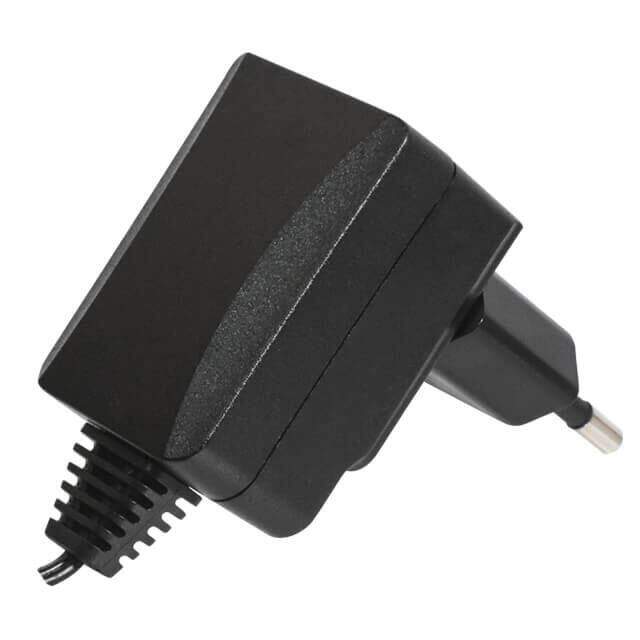

SMI6B-9-E-P5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MOUNT ADAPTER 9V 5.9W
PDF
/
Inventory: 5609
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Technical
Operating Temperature 0°C~40°C
Series SMI6B (6W)
Size / Dimension 1.85Lx1.36W x 1.04 H 47.0mmx34.5mmx26.4mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Applications ITE (Commercial)
Power (Watts) 5.9W
Approval Agency CCC, CE, cULus, FCC, GS, PSE, RCM
Efficiency Level VI, CoC Tier 2
Polarization Positive Center
Current - Output (Max) 660mA
Voltage - Input 90V~264VAC
Input Type Fixed Blade
Voltage - Output 9V
Form Wall Mount (Class II)
Region Utilized Europe
Cord Length 60.2 1.53m
Input Connector KSC 8305
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
No Load Power Consumption 75mW Max
Compliance
RoHS Status RoHS Compliant
