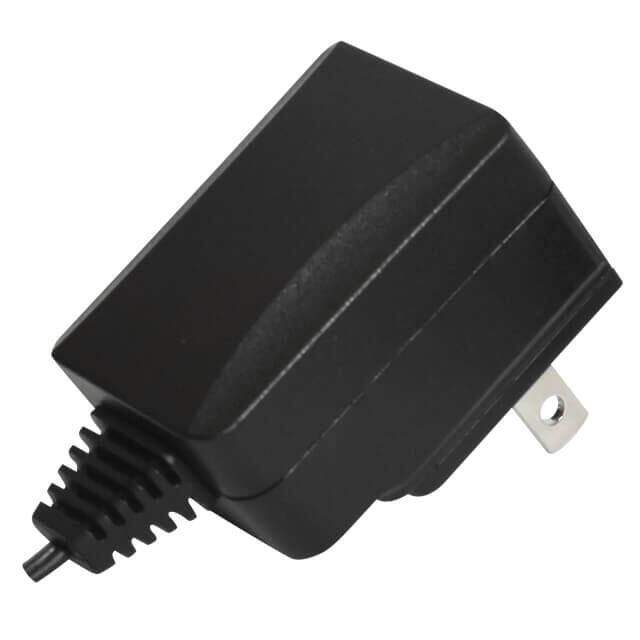

SMI6B-15-N-CUB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MOUNT ADAPTER 15V 6W
PDF
/
Inventory: 1865
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
No Load Power Consumption 75mW Max
Output Connector USB C
Input Connector NEMA 1-15P
Cord Length 60.2 1.53m
Region Utilized North America
Form Wall Mount (Class II)
Voltage - Output 15V
Input Type Fixed Blade
Voltage - Input 90V~264VAC
Current - Output (Max) 400mA
Efficiency Level VI, CoC Tier 2
Approval Agency CCC, CE, cULus, FCC, GS, PSE, RCM
Power (Watts) 6W
Applications ITE (Commercial)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 1.85Lx1.36W x 1.04 H 47.0mmx34.5mmx26.4mm
Series SMI6B (6W)
Operating Temperature 0°C~40°C
Supply Chain
Factory Lead Time 15 Weeks
