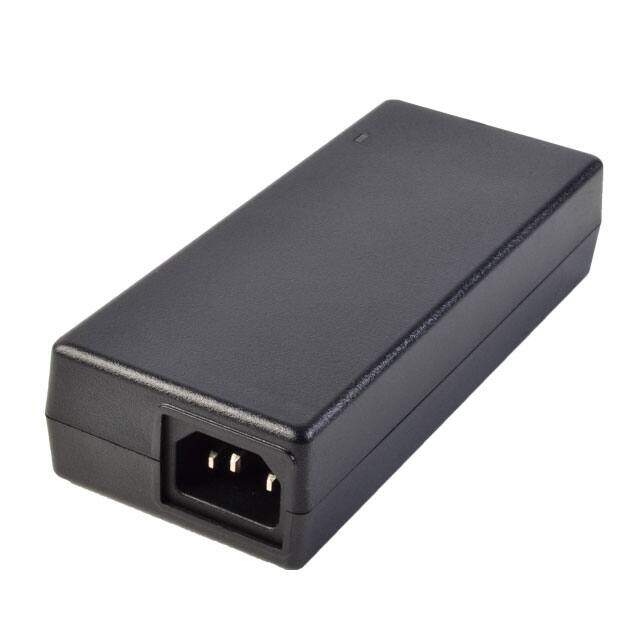

SDI90-48-U-P6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC DESKTOP ADAPTER 48V 90W
PDF
/
Inventory: 10026
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Weight 1.1lbs 499g
Technical
Operating Temperature 0°C~40°C
Published 2016
Series SDI90-U (90W)
Size / Dimension 5.94Lx2.52W x 1.42 H 151.0mmx64.0mmx36.0mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Max Operating Temperature 40°C
Min Operating Temperature 0°C
Applications ITE (Commercial)
Power (Watts) 90W
Max Power Dissipation 90W
Approval Agency CE, cULus, FCC, GS, PSE
Efficiency Level VI
Max Output Current 1.88A
Polarity Positive
Polarization Positive Center
Current - Output (Max) 1.88A
Voltage - Input 90V~264VAC
Input Type Cord (Sold Separately)
Voltage - Output 48V
Form Desktop (Class I)
Region Utilized International
Cord Length 59 1.50m
Input Connector IEC 320-C14
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
No Load Power Consumption 210mW Max
Dimensions
Height 36.068mm
Length 150.876mm
Width 64.008mm
Compliance
RoHS Status RoHS Compliant
