SDI36-5-U-P6R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

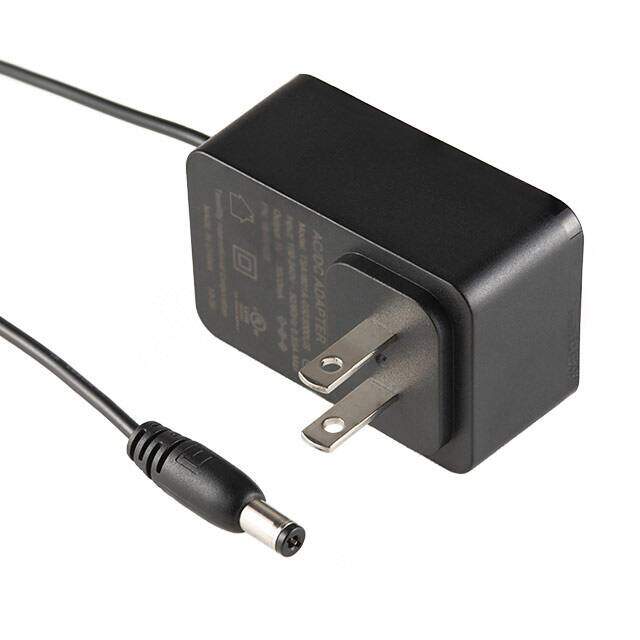

AC/DC DESKTOP ADAPTER 5V 25W
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
No Load Power Consumption 75mW Max
Output Connector Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector IEC 320-C14
Cord Length 39.4 1.00m
Region Utilized International
Form Desktop (Class I)
Voltage - Output 5V
Input Type Cord (Sold Separately)
Voltage - Input 90V~264VAC
Current - Output (Max) 5A
Polarization Positive Center
Efficiency Level VI, CoC Tier 2
Approval Agency CE, cULus, FCC, PSE
Power (Watts) 25W
Applications ITE (Commercial)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 3.94Lx1.97W x 1.30 H 100.0mmx50.0mmx33.0mm
Series SDI36-U (36W)
Operating Temperature 0°C~40°C
Supply Chain
Factory Lead Time 20 Weeks
