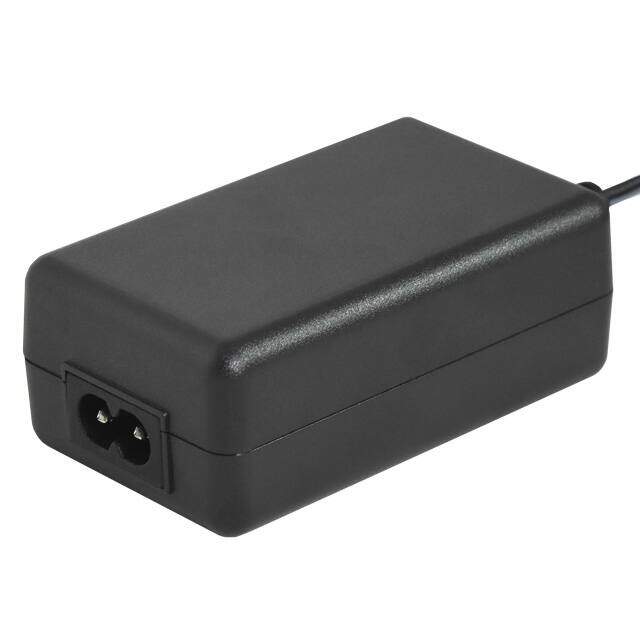

SDI24-5-UD2-P5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC-DC, 5 VDC, 4 A, SW, C8 DESK-T
PDF
/
Inventory: 7712
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
No Load Power Consumption 75mW Max
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector IEC 320-C8
Cord Length 39.4 1.00m
Region Utilized Europe
Form Desktop (Class II)
Voltage - Output 5V
Input Type Cord
Voltage - Input 90V~264VAC
Current - Output (Max) 4A
Polarization Positive Center
Efficiency Level VI, CoC Tier 2
Approval Agency CE, cULus, FCC, PSE
Power (Watts) 20W
Applications ITE (Commercial)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 3.48Lx1.97W x 1.34 H 88.5mmx50.0mmx34.0mm
Series SDI24-UD (24W)
Operating Temperature 0°C~40°C
Supply Chain
Factory Lead Time 20 Weeks
