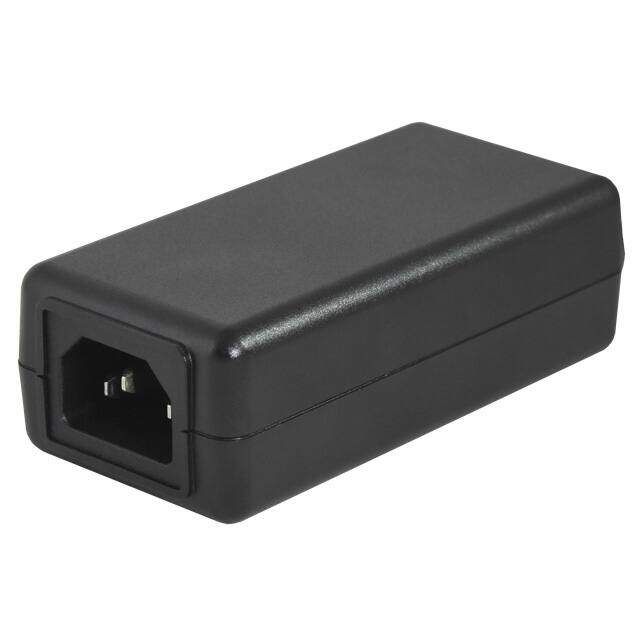

SDI24-5-U2-P6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC-DC, 5 VDC, 4 A, SW, C14 DESK-
PDF
/
Inventory: 5962
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Technical
Operating Temperature 0°C~40°C
Series SDI24-U (24W)
Size / Dimension 3.94Lx1.97W x 1.30 H 100.0mmx50.0mmx33.0mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Applications ITE (Commercial)
Power (Watts) 20W
Approval Agency CE, cULus, FCC, PSE
Efficiency Level VI, CoC Tier 2
Polarization Positive Center
Current - Output (Max) 4A
Voltage - Input 90V~264VAC
Input Type Cord
Voltage - Output 5V
Form Desktop (Class I)
Region Utilized Europe
Cord Length 39.4 1.00m
Input Connector IEC 320-C14
Output Connector Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
No Load Power Consumption 75mW Max
Compliance
RoHS Status RoHS Compliant
