ETSA1609380UC-P51-WP
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

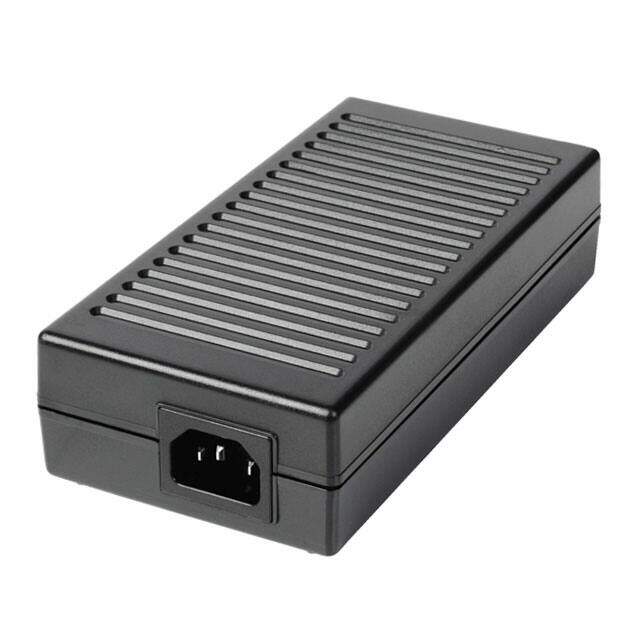

AC/DC DESKTOP ADAPTER 16V 150W
PDF
/
Inventory: 7884
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Number of Pins 4
Technical
Operating Temperature 0°C~60°C
Published 2015
Series ETSA-U (150W)
Size / Dimension 6.69Lx3.35W x 1.73 H 170.0mmx85.0mmx44.0mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Applications ITE (Commercial)
Power (Watts) 150W
Max Power Dissipation 150W
Approval Agency CE, cULus, TUVgs
Efficiency Level VI
Max Output Current 9.38A
Voltage - Input 90V~264VAC
Input Type Cord
Voltage - Output 16V
Form Desktop (Class I)
Region Utilized North America
Cord Length 39.4 1.00m
Input Connector IEC 320-C14
Output Connector Power DIN, 4 Pin
No Load Power Consumption 500mW Max
Dimensions
Height 43.942mm
Compliance
RoHS Status RoHS Compliant
