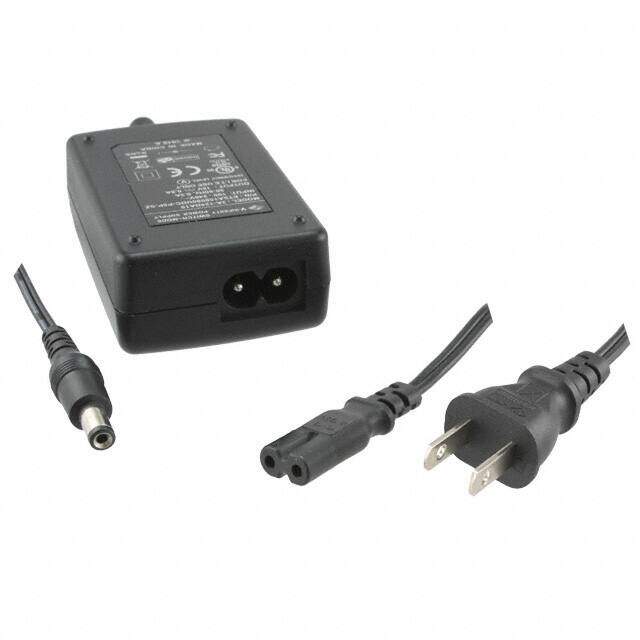

ETSA060200UDC-P5P
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC DESKTOP ADAPTER 6V 12W
PDF
/
Inventory: 6422
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 47.498mm
Length 74.93mm
Height 27.432mm
Technical
No Load Power Consumption 300mW Max
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector IEC 320-C8
Cord Length 72 1.83m
Region Utilized North America
Form Desktop (Class II)
Voltage - Output 6V
Input Type Cord
Voltage - Input 85V~264VAC
Current - Output (Max) 2A
Polarization Positive Center
Polarity Positive
Max Output Current 2A
Efficiency Level V
Approval Agency CE, cULus, TUVgs
Max Power Dissipation 12W
Power (Watts) 12W
Applications ITE (Commercial)
Min Operating Temperature 0°C
Max Operating Temperature 40°C
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 2.95Lx1.87W x 1.08 H 75.0mmx47.5mmx27.3mm
Series ETSA-UD (12W)
Published 2015
Operating Temperature 0°C~40°C
