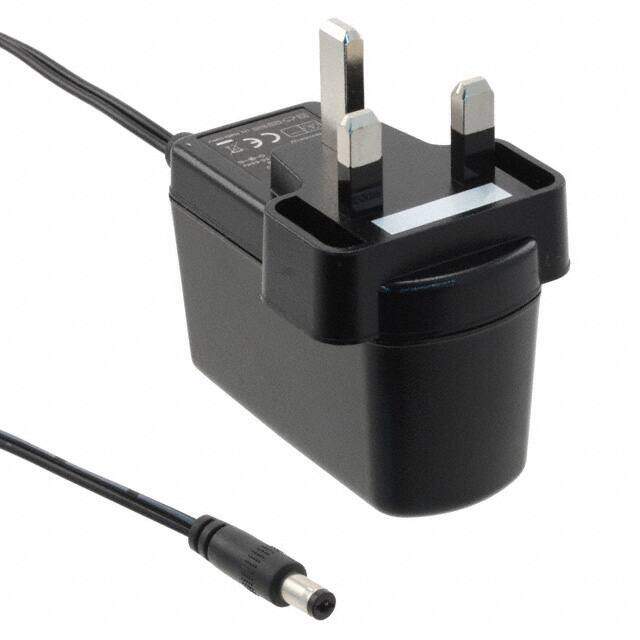

EPSA120100UB-P5P-EJ
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MOUNT ADAPTER 12V 12W
PDF
/
Inventory: 950
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 46.99mm
Length 74.93mm
Height 35.052mm
Technical
No Load Power Consumption 300mW Max
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector BS 1363
Cord Length 72 1.83m
Region Utilized United Kingdom
Form Wall Mount (Class II)
Voltage - Output 12V
Input Type Fixed Blade
Voltage - Input 90V~264VAC
Current - Output (Max) 1A
Polarization Positive Center
Polarity Positive
Max Output Current 1A
Efficiency Level V
Approval Agency cULus
Max Power Dissipation 12W
Power (Watts) 12W
Applications ITE (Commercial)
Min Operating Temperature 0°C
Max Operating Temperature 40°C
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 2.95Lx1.97W x 1.85 H 75.0mmx50.0mmx47.0mm
Series EPSA UK BLADE (12W)
Published 2012
Operating Temperature 0°C~40°C
