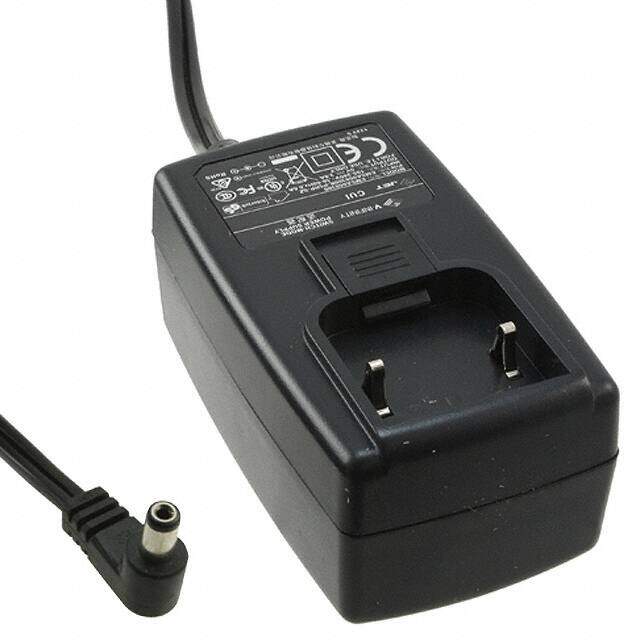

EPS030100-P5RP
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MOUNT ADAPTER 3V 3W
PDF
/
Inventory: 9616
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Operating Temperature 0°C~40°C
Published 2015
Series EPS (6W)
Size / Dimension 2.45Lx1.06W x 1.65 H 62.3mmx26.8mmx42.0mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Max Operating Temperature 40°C
Min Operating Temperature 0°C
Applications ITE (Commercial)
Power (Watts) 3W
Max Power Dissipation 6W
Approval Agency cULus
Efficiency Level IV
Max Output Current 1A
Polarity Positive
Polarization Positive Center
Current - Output (Max) 1A
Voltage - Input 100V~132VAC
Input Type Fixed Blade
Voltage - Output 3V
Form Wall Mount (Class II)
Region Utilized North America
Cord Length 72 1.83m
Input Connector NEMA 1-15P
Output Connector Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
No Load Power Consumption 500mW Max
Dimensions
Height 41.91mm
Length 62.23mm
Width 26.924mm
Compliance
RoHS Status RoHS Compliant
