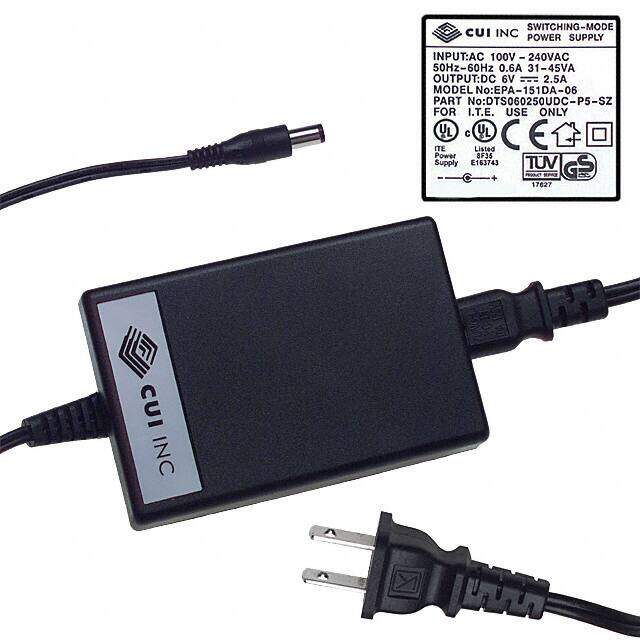

DTS060250UDC-P5P
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC DESKTOP ADAPTER 6V 15W
PDF
/
Inventory: 4393
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 57.912mm
Length 89.916mm
Height 27.94mm
Technical
No Load Power Consumption 100mW Max
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
Input Connector IEC 320-C8
Cord Length 72 1.83m
Region Utilized International
Form Desktop (Class II)
Voltage - Output 6V
Output Power 15W
Input Type Cord (Sold Separately)
Output Current 2.5A
Cable Length 1.83m
Voltage - Input 90V~264VAC
Current - Output (Max) 2.5A
Polarization Positive Center
Polarity Positive
Max Output Current 2.5A
Efficiency 65%
Approval Agency CE, cULus
Number of Outputs 1
Max Power Dissipation 15W
Power (Watts) 15W
Applications ITE (Commercial)
Min Operating Temperature 10°C
Max Operating Temperature 40°C
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 3.54Lx2.28W x 1.10 H 90.0mmx58.0mmx28.0mm
Published 2002
Operating Temperature 10°C~40°C
Physical
Mount Desktop
