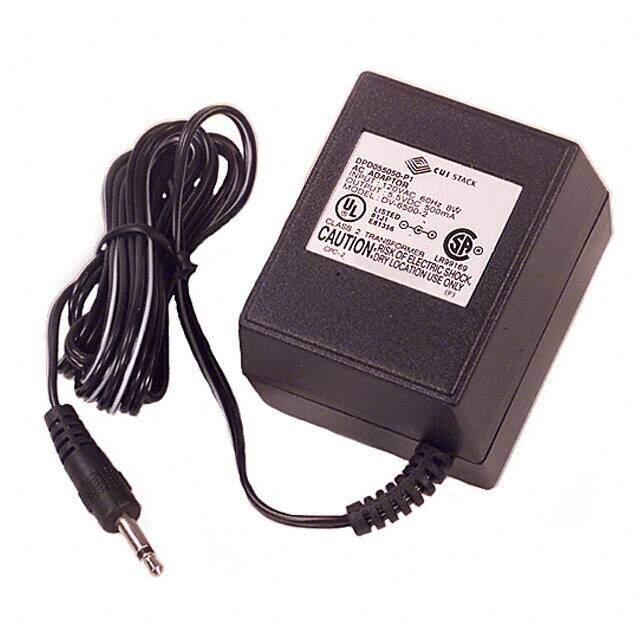

DPD055050-P1P
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MNT ADAPTER 5.5V 2.8W
PDF
/
Inventory: 3827
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height 40.894mm
Technical
Output Connector Phono Plug, 3.5mm O.D. x 14.5mm
Input Connector NEMA 1-15P
Cord Length 72 1.83m
Region Utilized North America
Form Wall Mount (Class II)
Voltage - Output 5.5V
Output Power 2.75W
Input Type Fixed Blade
Output Current 500mA
Cable Length 1.83m
Voltage - Input 120VAC
Polarization Positive Tip, Negative Sleeve
Polarity Negative, Positive
Max Output Current 500mA
Number of Outputs 1
Frequency 60Hz
Max Power Dissipation 3W
Power (Watts) 2.8W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 2.36Lx1.99W x 1.61 H 60.0mmx50.5mmx41.0mm
Published 2002
Physical
Mount Wall
