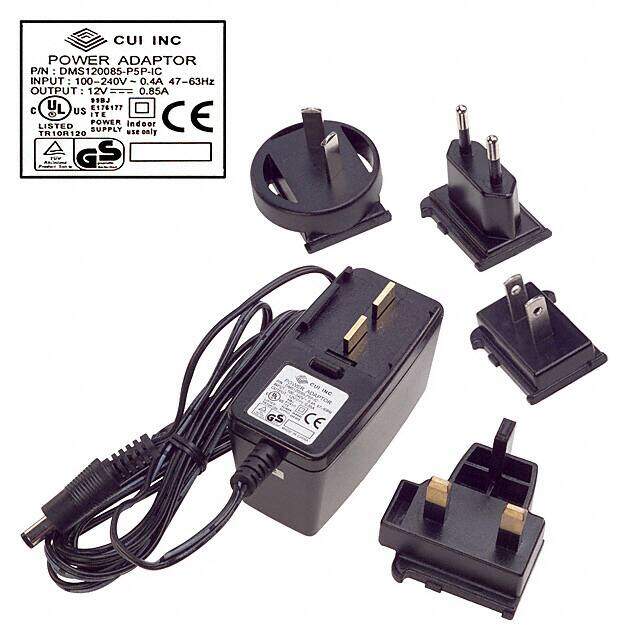

DMS120085-P5-IC
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MOUNT ADAPTER 12V 10W
PDF
/
Inventory: 7441
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
Physical
Mount Wall
Weight 0.287lb 130.18g
Technical
Operating Temperature 0°C~40°C
Published 2006
Size / Dimension 2.83Lx1.81W x 1.38 H 72.0mmx46.0mmx35.0mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Max Operating Temperature 40°C
Min Operating Temperature 0°C
Applications ITE (Commercial)
Power (Watts) 10W
Max Power Dissipation 10W
Number of Outputs 1
Approval Agency CE, cULus, TUVgs
Efficiency 75%
Max Output Current 850mA
Polarity Positive
Polarization Positive Center
Current - Output (Max) 850mA
Voltage - Input 90V~264VAC
Cable Length 1.83m
Output Current 850mA
Input Type Multi-Blade (Included)
Output Power 10W
Voltage - Output 12V
Form Wall Mount (Class II)
Region Utilized International
Cord Length 70.9 1.80m
Input Connector Multi-Blade
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Dimensions
Height 45.974mm
Length 71.882mm
Width 35.052mm
