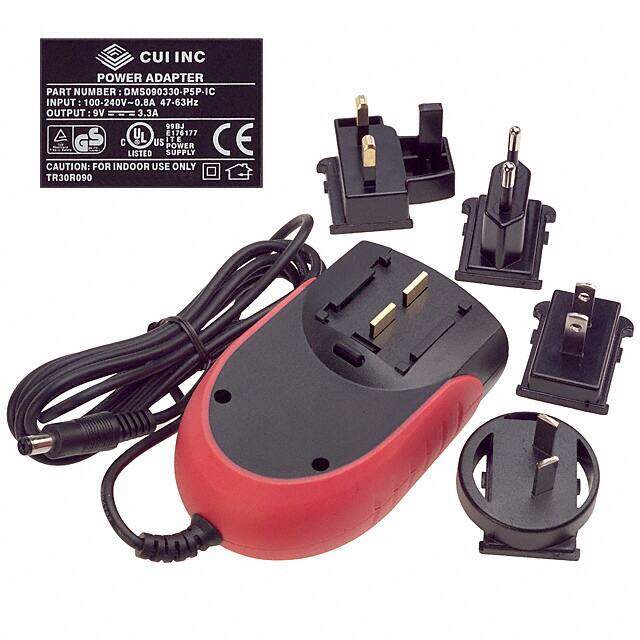

DMS090330-P5P-IC
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MOUNT ADAPTER 9V 30W
PDF
/
Inventory: 5751
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Wall
Weight 0.625lb 283.5g
Technical
Operating Temperature 0°C~40°C
Published 2004
Size / Dimension 4.24Lx2.27W x 1.32 H 107.7mmx57.7mmx33.5mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Applications ITE (Commercial)
Max Power Dissipation 30W
Number of Outputs 1
Approval Agency CE, cULus, TUVgs
Efficiency 75%
Max Output Current 3.3A
Polarity Positive
Polarization Positive Center
Voltage - Input 90V~264VAC
Cable Length 1.83m
Output Current 3.3A
Input Type Multi-Blade (Included)
Output Power 30W
Voltage - Output 9V
Form Wall Mount (Class II)
Region Utilized International
Cord Length 70.9 1.80m
Input Connector Multi-Blade
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Dimensions
Height 33.528mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
